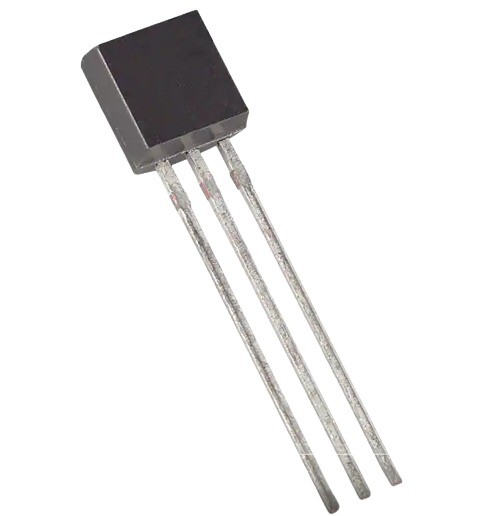

LM336 2.5V Precision Voltage Reference (Original, TO 92 Package)

SKU: ICD-846Category: Electronic Components
₹ 29.50 (Inclusive of 18.00% GST)
Base Price: ₹ 25.00 | GST (18.00%): ₹ 4.50
In Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

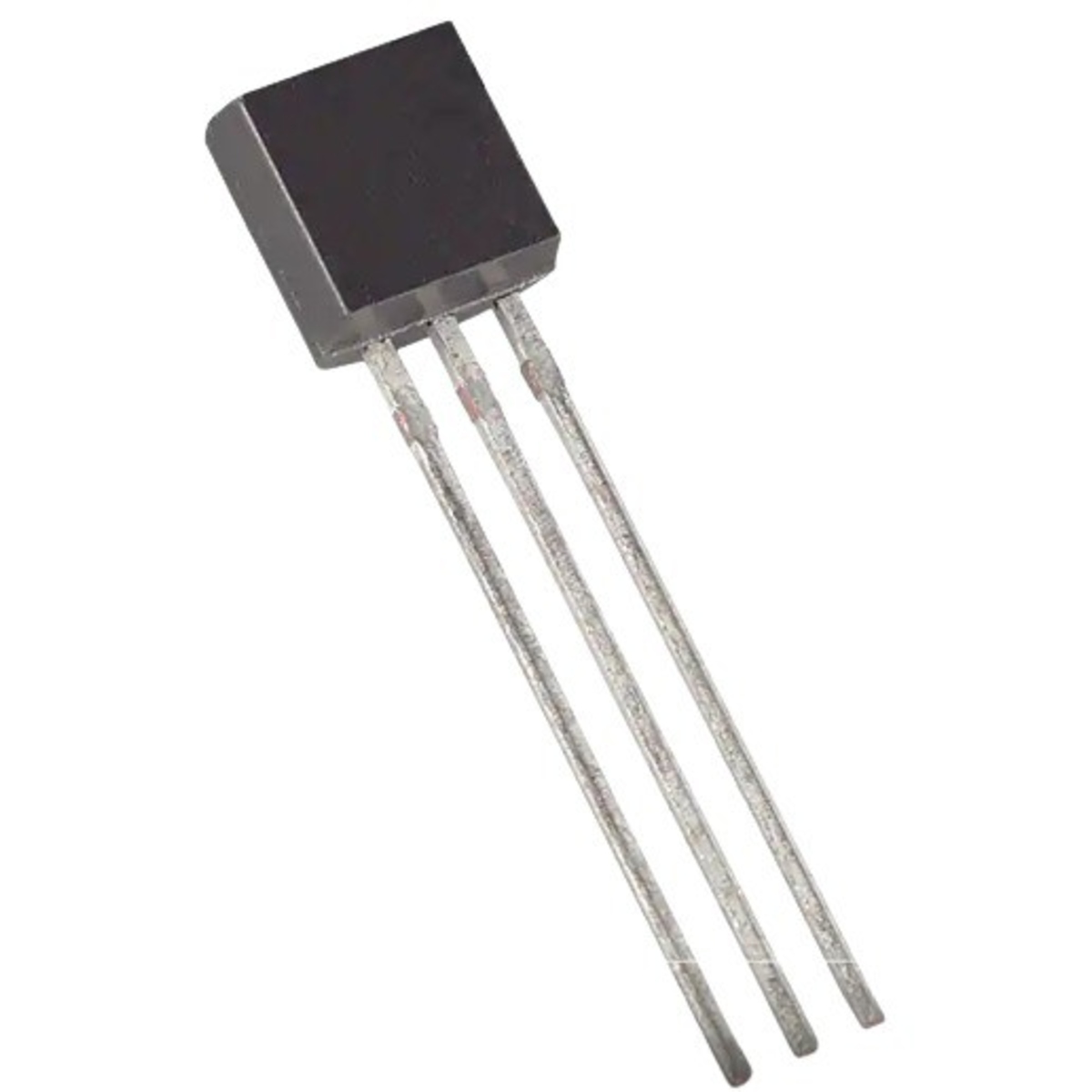

LM336 2.5V Precision Voltage Reference (Original, TO 92 Package)

The original LM336 2.5V is a precision shunt voltage reference designed to provide a stable reference voltage for electronic circuits. It operates like a precision Zener diode and requires an external current limiting resistor to maintain the specified operating current. Its compact TO 92 package makes it suitable for voltage regulation, measurement, calibration, and analog signal processing applications.

Key Features

• Original LM336 2.5V voltage reference

• Nominal reference voltage of 2.5V

• Precision voltage reference performance

• Adjustable reference voltage with an external trim circuit, where supported

• Requires an external current limiting resistor

• Compact TO 92 package for through hole mounting
