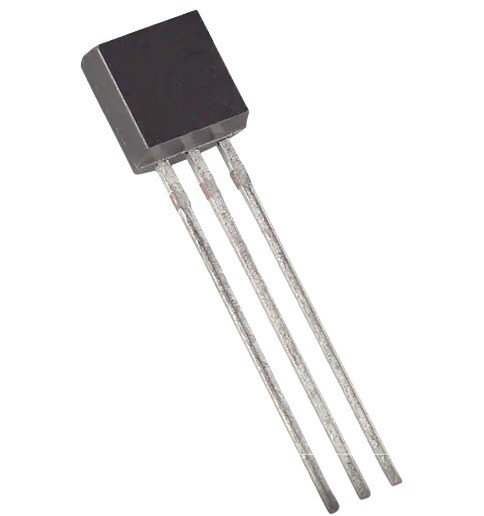

LM336 5V Precision Voltage Reference (TO 92 Package)

The LM336 5V is a precision shunt voltage reference designed to provide a stable reference voltage for electronic circuits. It operates similarly to a precision Zener diode and requires an external current limiting resistor to maintain the appropriate operating current. It is suitable for voltage regulation, measurement, calibration, and analog signal processing applications.

Key Features -

• Nominal reference voltage of 5V, subject to the exact device variant

• Precision shunt voltage reference operation

• Stable reference for analog circuits

• Requires an external current limiting resistor

• Suitable for voltage monitoring and calibration applications

• Compact TO 92 package for through hole mounting

Specifications -

• Part Number: LM336 5V

• Component Type: Precision Shunt Voltage Reference

• Nominal Reference Voltage: 5V, verify exact variant

• Package Type: TO 92

• Number of Pins: 3

• Operating Current: Refer to the manufacturer datasheet

• Voltage Tolerance: Depends on the manufacturer and variant

Applications -

• Precision voltage reference circuits

• Analog to digital converter reference supplies

• Digital to analog converter circuits

• Voltage monitoring and regulation

• Measurement and calibration equipment

• Sensor signal conditioning

• Battery monitoring circuits
