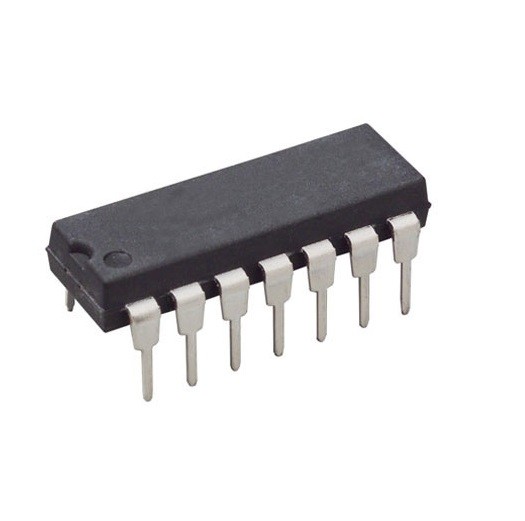

LM3900N Quad Norton Operational Amplifier IC (DIP 14 Package)

The LM3900N is a quad Norton operational amplifier IC containing four independent current differencing amplifiers in a single package. Unlike conventional voltage input operational amplifiers, the LM3900N operates primarily by comparing input currents, making it useful for analog signal processing, waveform generation, filtering, and control circuits.

Key Features -

• Four independent Norton operational amplifiers

• Current differencing input architecture

• Designed for single supply operation

• Wide range of analog circuit applications

• Suitable for waveform generation and signal processing

• Can be used for active filters and oscillators

• Four amplifier sections in one IC

• DIP 14 through hole package

Specifications -

• Part Number: LM3900N

• Component Type: Quad Norton Operational Amplifier

• Number of Amplifiers: 4

• Amplifier Type: Current Differencing Norton Amplifier

• Package Type: DIP 14

• Number of Pins: 14

• Mounting Type: Through Hole

• Supply Configuration: Primarily designed for single supply operation

• Electrical Ratings: Refer to the exact manufacturer datasheet

Applications -

• Analog signal processing

• Active filter circuits

• Oscillator circuits

• Waveform generators

• Amplifier circuits

• Comparator and threshold circuits

• Signal conditioning

• Timing and control circuits

• Industrial electronic circuits
