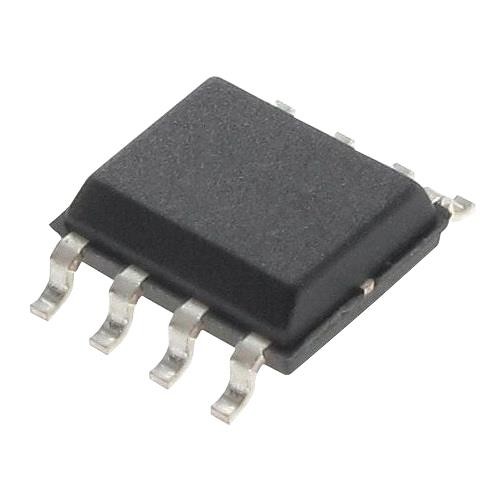

LM7555 CMOS Timer IC (SOIC 8)

The LM7555 is a low power CMOS timer IC designed for precision timing, pulse generation, oscillation and delay control applications. It is a CMOS alternative to the conventional 555 timer, offering reduced power consumption and high input impedance. The compact SOIC 8 surface mount package makes it suitable for embedded systems, electronic control circuits, waveform generators and battery powered applications.

Key Features -

• CMOS version of the 555 timer

• Low power consumption

• High input impedance

• Supports monostable and astable operation

• Suitable for precision timing and pulse generation

• Adjustable timing using external resistors and capacitors

• Trigger and reset control inputs

• Compatible with standard 555 timer functionality

• Compact SOIC 8 package

• Surface mount construction

Specifications -

• Part Number: LM7555

• Product Type: CMOS Timer IC

• Timer Type: 555 Compatible

• Technology: CMOS

• Number of Timers: 1

• Operating Voltage: 2V to 18V

• Operating Modes: Monostable and Astable

• Output Type: Digital Pulse

• Package: SOIC 8

• Number of Pins: 8

• Mounting Type: SMD

Applications -

• Timer and delay circuits

• Pulse generation

• Square wave oscillators

• LED flashing circuits

• Frequency generation

• Pulse width modulation circuits

• Battery powered electronics

• Embedded control systems

• Alarm and signaling circuits

• General electronic timing applications
