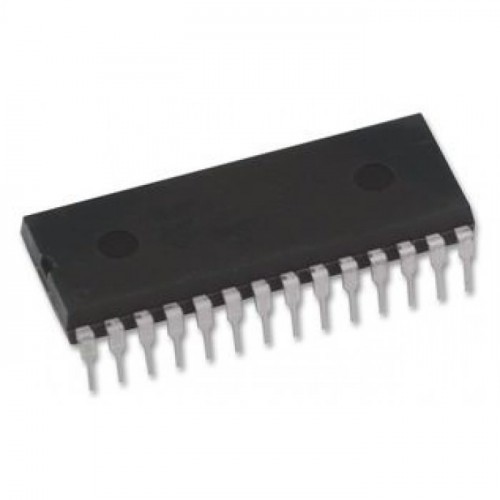

LM1203N RGB Video Amplifier System DIP-28 (LM1203N DIP IC)
The LM1203N is a high-bandwidth monolithic video amplifier system containing three identical video amplifiers, making it ideal for RGB color monitor applications. It features a wide bandwidth of 70MHz, allowing for high-resolution video processing with minimal signal degradation. This IC integrates essential video functions including three matched video channels, individual contrast control, and black-level clamping circuitry, all within a single 28-pin package.
This IC is primarily used in high-resolution RGB color monitors, video projectors, and workstation displays. It is a specialized component for Arduino electronics projects in India involving analog video signal manipulation, VGA signal processing, or restoring vintage computer hardware and arcade monitors.
Key Features
- Three independent video amplifiers for Red, Green, and Blue channels
- High bandwidth of 70MHz at -3dB
- Matched gain between channels for color balance
- Global contrast control and individual gain (drive) controls
- Built-in black-level clamping for stable DC restoration
- Low output impedance to drive CRT cathodes or video cables
- Internal reference voltage for stable biasing
- Single 12V supply operation
Specifications
- IC Type = Triple RGB Video Amplifier
- Bandwidth = 70MHz
- Rise and Fall Time = 5ns (Typical)
- Supply Voltage = 10.8V to 13.2V (12V Typical)
- Package Type = DIP
- Number of Pins = 28
- Mounting Type = Through-Hole
- Operating Temperature = 0 to 70 degrees Celsius
Interfaces
- R, G, B IN = Three Analog Video Inputs
- R, G, B OUT = Three Processed Video Outputs
- CLAMP GATE = Common Black-level Clamp Input
- CONTRAST = Master Contrast Control Input
- R, G, B DRIVE = Individual Channel Gain Adjustments
- VCC = Positive Supply Voltage (12V)
- GND = Ground (0V)
- REF OUT = Internal Reference Voltage Output
