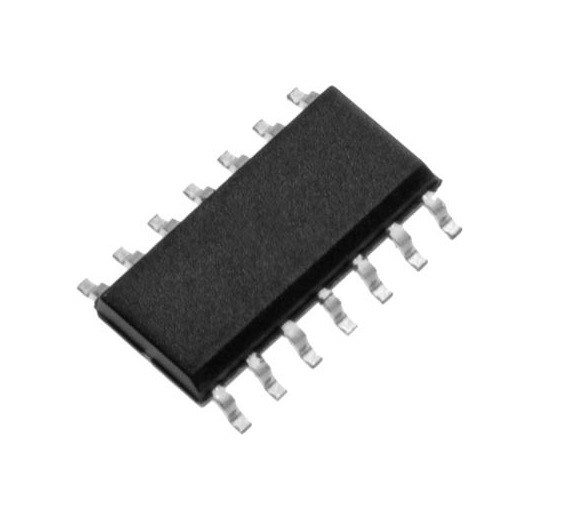

LM124 SOIC-14 Quad Operational Amplifier IC (LM124)

The LM124 is a quad operational amplifier IC designed for general purpose analog signal processing, amplification, filtering, and control applications. It contains four independent operational amplifiers in a single SOIC-14 package, making it suitable for industrial electronics, sensor signal conditioning, active filters, and embedded analog circuits.

Key Features -

  • Quad operational amplifier IC
  • Four independent op-amp channels
  • Wide supply voltage range
  • SOIC-14 surface mount package
  • Low power analog operation

Specifications -

  • IC type / Product type - Quad Operational Amplifier IC
  • Logic family / Component type - Linear Analog IC
  • Package type - SOIC-14 SMD IC
  • Supply voltage - Approx 3V to 32V DC or +/-1.5V to +/-16V DC
  • Input voltage - Differential analog input
  • Output voltage - Analog amplified output
  • Current rating - Low power analog operation
  • Frequency / propagation delay - Approx 1MHz gain bandwidth product
  • Operating temperature - Approx -40 to +85 degree C
  • Additional important specifications - Four independent operational amplifiers, low input bias current, wide common mode range, internal frequency compensation, short circuit protection support

Applications -

  • Sensor signal conditioning circuits
  • Active filter applications
  • Industrial control systems
  • Audio and analog processing circuits
  • Embedded analog electronics projects

Pinout Configuration -

  • Pin 1 - Amplifier output
  • Pin 2 - Inverting input
  • Pin 3 - Non-inverting input
  • Additional pins - Additional amplifier input and output pins, positive supply pin, negative supply pin, ground connection
