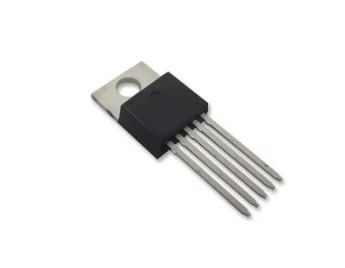

LM2575 5V HTC OG Step Down Switching Regulator IC (LM2575 TO-220 IC)
The LM2575 5V HTC OG is a monolithic step down switching regulator integrated circuit designed to deliver a fixed 5V output with high efficiency and reliable performance. It operates as a buck converter and is optimized for power supply applications requiring stable voltage regulation with minimal power loss. The TO-220 package ensures efficient heat dissipation and robust operation in demanding environments.
In India, the LM2575 5V HTC OG is widely used in power supplies, embedded systems, and industrial electronics. It is valued for its consistent 5V output, ease of implementation, and dependable performance in a variety of electronic circuits.
Key Features
- Fixed 5V Output: Provides stable and regulated 5V output.
- High Efficiency: Switching design minimizes power loss and heat generation.
- Minimal External Components: Simplifies circuit design and reduces cost.
- Thermal Protection: Built-in safety features for reliable operation.
- TO-220 Package: Supports efficient heat dissipation and durability.
Specifications
- IC Type: Step Down Switching Regulator
- Output Voltage: 5V Fixed Output
- Output Current: Up to 1A
- Operating Voltage Range: Suitable for wide input voltage range
- Switching Frequency: Fixed frequency operation
- Package Type: TO-220
- Mounting Type: Through-Hole
- Application: Power supplies embedded systems industrial electronics
Pinout Configuration (TO-220 Layout)
- Pin configuration includes input output ground and feedback control pins
- Refer to datasheet or circuit diagram for exact pin details
