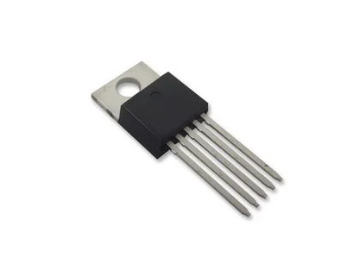

LM2575 5V Step Down Switching Regulator IC (LM2575 TO-220 IC)
The LM2575 5V is a monolithic step down switching regulator integrated circuit designed to provide a fixed 5V output with high efficiency. It operates as a buck converter and is capable of delivering stable output voltage with low power loss. The TO-220 package allows efficient heat dissipation and reliable performance in power supply applications.
In India, the LM2575 5V is widely used in power supplies, embedded systems, and industrial electronics. It is valued for its efficiency, simple design, and ability to deliver a stable regulated 5V output with minimal external components.
Key Features
- Fixed 5V Output: Provides stable and regulated 5V output.
- High Efficiency: Switching regulator reduces power dissipation.
- Simple Design: Requires minimal external components.
- Thermal Protection: Built-in protection for safe operation.
- TO-220 Package: Ensures effective heat dissipation.
Specifications
- IC Type: Step Down Switching Regulator
- Output Voltage: 5V Fixed Output
- Output Current: Up to 1A
- Operating Voltage Range: Suitable for wide input range
- Switching Frequency: Fixed frequency operation
- Package Type: TO-220
- Mounting Type: Through-Hole
- Application: Power supplies embedded systems industrial circuits
Pinout Configuration (TO-220 Layout)
- Pin configuration includes input output ground and control pins
- Refer to datasheet or circuit diagram for exact pin details
