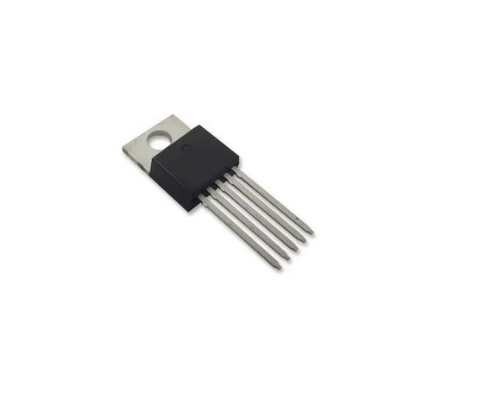

LM2575T 12V HTC OG Step Down Switching Regulator IC (LM2575T TO-220 IC)
The LM2575T 12V HTC OG is a monolithic step down switching regulator integrated circuit designed to provide a fixed 12V output with high efficiency and reliable performance. It operates as a buck converter and delivers stable voltage regulation with low power loss, making it suitable for power supply and industrial applications. The TO-220 package ensures efficient heat dissipation and dependable operation in demanding environments.
In India, the LM2575T 12V HTC OG is widely used in power supplies, embedded systems, and industrial electronics. It is valued for its consistent 12V output, simple circuit design, and reliable long-term performance.
Key Features
- Fixed 12V Output: Provides stable and regulated 12V output.
- High Efficiency: Switching regulator design reduces power loss.
- Minimal External Components: Simplifies circuit implementation.
- Thermal Protection: Ensures safe and reliable operation.
- TO-220 Package: Supports effective heat dissipation.
Specifications
- IC Type: Step Down Switching Regulator
- Output Voltage: 12V Fixed Output
- Output Current: Up to 1A
- Operating Voltage Range: Suitable for wide input voltage range
- Switching Frequency: Fixed frequency operation
- Package Type: TO-220
- Mounting Type: Through-Hole
- Application: Power supplies industrial electronics embedded systems
Pinout Configuration (TO-220 Layout)
- Pin configuration includes input output ground and feedback control pins
- Refer to datasheet or circuit diagram for exact pin details
