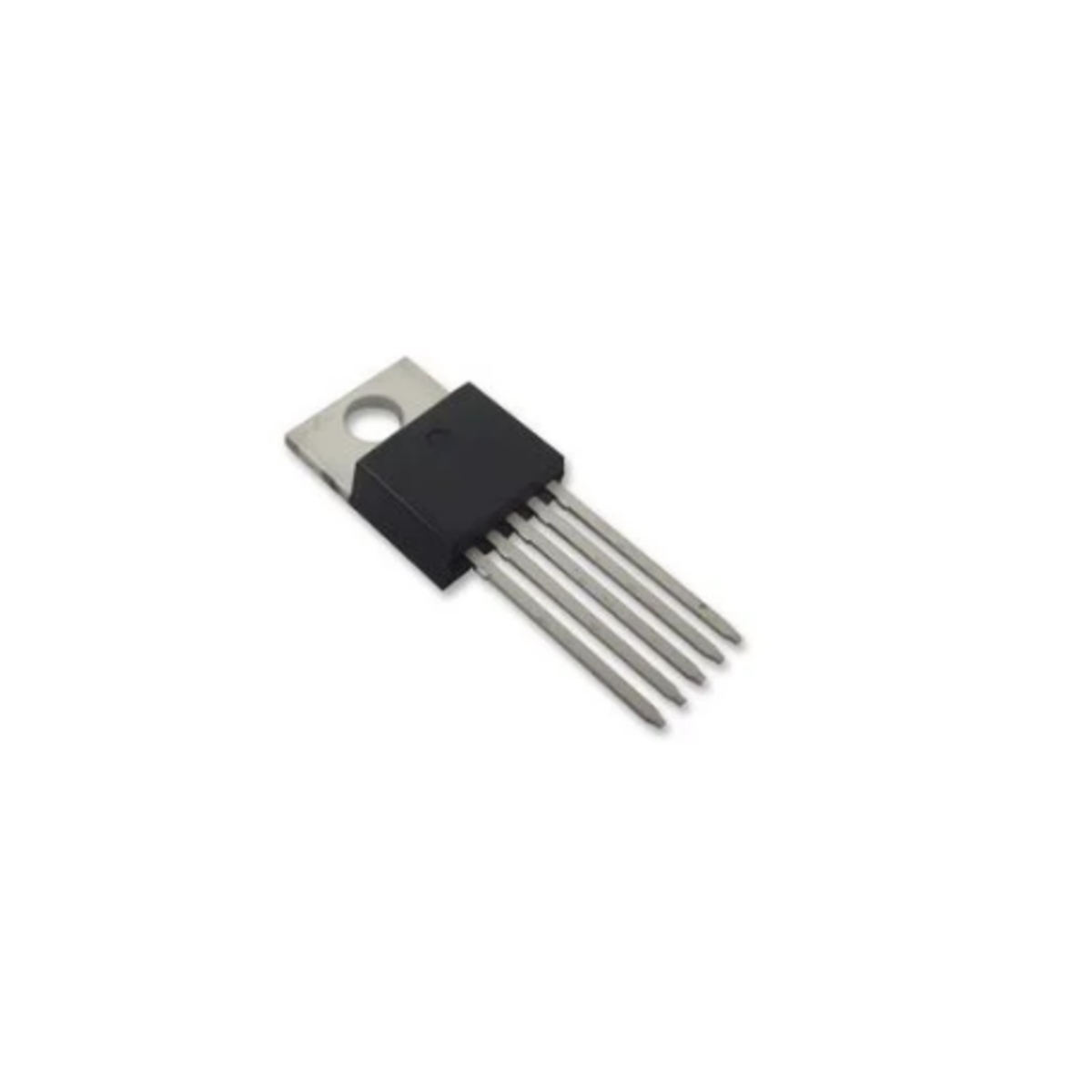

LM2575T 12V Step Down Switching Regulator IC (LM2575T TO-220 IC)
The LM2575T 12V is a monolithic step down switching regulator integrated circuit designed to provide a fixed 12V output with high efficiency and reliable performance. It operates as a buck converter and delivers stable voltage regulation with low power loss, making it ideal for power supply applications. The TO-220 package ensures efficient heat dissipation and dependable operation in demanding environments.
In India, the LM2575T 12V is widely used in power supplies, industrial systems, and embedded applications. It is valued for its consistent output, simple implementation, and ability to deliver regulated 12V with minimal external components.
Key Features
- Fixed 12V Output: Provides stable and regulated 12V output.
- High Efficiency: Switching regulator reduces power dissipation.
- Simple Design: Requires minimal external components.
- Thermal Protection: Built-in safety features for reliable operation.
- TO-220 Package: Ensures effective heat dissipation.
Specifications
- IC Type: Step Down Switching Regulator
- Output Voltage: 12V Fixed Output
- Output Current: Up to 1A
- Operating Voltage Range: Suitable for wide input voltage range
- Switching Frequency: Fixed frequency operation
- Package Type: TO-220
- Mounting Type: Through-Hole
- Application: Power supplies industrial electronics embedded systems
Pinout Configuration (TO-220 Layout)
- Pin configuration includes input output ground and control pins
- Refer to datasheet or circuit diagram for exact pin details
