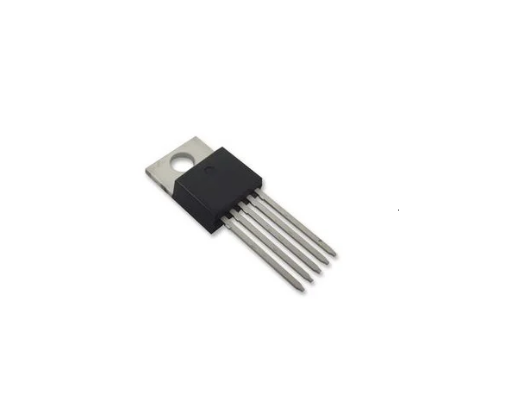

LM2575T Adjustable Step Down Switching Regulator IC (LM2575T TO-220 IC)
The LM2575T ADJ is a monolithic step down switching regulator integrated circuit designed to provide adjustable output voltage with high efficiency and reliable performance. It operates as a buck converter and allows users to set the desired output voltage using external resistors. The TO-220 package ensures efficient heat dissipation and stable operation in power supply applications.
In India, the LM2575T ADJ is widely used in power supplies, embedded systems, and industrial electronics. It is valued for its flexibility, high efficiency, and ability to deliver regulated adjustable output with minimal external components.
Key Features
- Adjustable Output Voltage: Output voltage can be set as per requirement.
- High Efficiency: Switching regulator reduces power loss and heat.
- Minimal External Components: Simplifies circuit design.
- Thermal Protection: Built-in safety features for reliable operation.
- TO-220 Package: Provides efficient heat dissipation.
Specifications
- IC Type: Step Down Switching Regulator
- Output Type: Adjustable Output
- Output Current: Up to 1A
- Operating Voltage Range: Suitable for wide input voltage range
- Switching Frequency: Fixed frequency operation
- Package Type: TO-220
- Mounting Type: Through-Hole
- Application: Power supplies embedded systems industrial electronics
Pinout Configuration (TO-220 Layout)
- Pin configuration includes input output ground and feedback pins
- Refer to datasheet or circuit diagram for exact pin details
