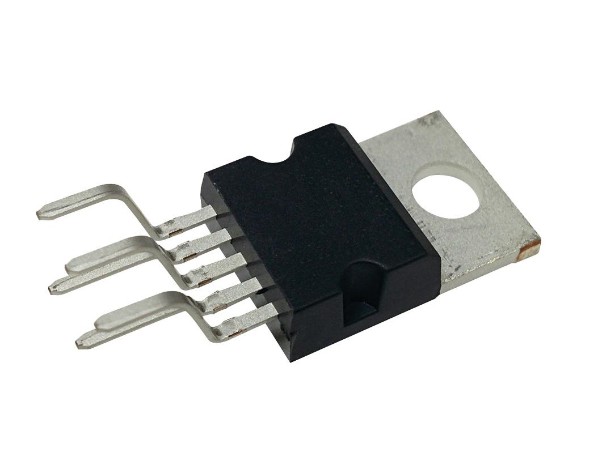

LM2595T 12V NSC OG Step Down Switching Regulator IC Original OG (LM2595T TO-220 IC)
The LM2595T 12V NSC OG Step Down Switching Regulator IC Original OG is a high-efficiency DC DC buck converter designed to deliver a fixed 12V regulated output for power supply and electronic circuit applications. This NSC original OG quality TO-220 package regulator IC ensures reliable performance, long life, and stable voltage output, making it ideal for professional and industrial use.
The LM2595T 12V IC is widely used in India for SMPS power supplies, embedded systems, battery-operated devices, and industrial electronics. Its switching regulator design minimizes heat generation and power loss compared to linear regulators, making it suitable for compact and energy-efficient designs.
Key Features
- Fixed 12V Output: Provides stable and regulated 12V output voltage.
- High Efficiency Buck Converter: Reduces power loss and improves performance.
- NSC Original OG Quality: Ensures reliable and long-lasting operation.
- Output Current Capability: Supports efficient load driving for power applications.
- Low Heat Generation: Ideal for efficient power supply designs.
- Minimal External Components: Simplifies circuit design and reduces cost.
- Built-in Protection: Includes thermal shutdown and current limiting.
- TO-220 Package: Ensures effective heat dissipation and durability.
Specifications
- IC Type: Step Down Switching Regulator IC
- Output Voltage: 12V Fixed Output
- Output Current: Up to 1A Output Current
- Input Voltage Range: Wide input voltage support
- Switching Frequency: Fixed frequency operation
- Efficiency: High efficiency power conversion
- Package Type: TO-220 Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: SMPS power supply DC DC converter embedded systems battery charger industrial electronics
Pinout Configuration (TO-220 Layout)
- Vin Input Supply Pin
- Vout Regulated Output Pin
- GND Ground Pin
- Feedback Pin
- ON OFF Control Pin for regulator operation
