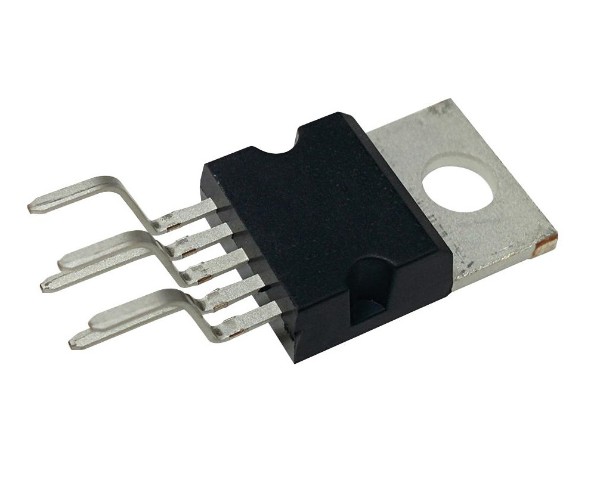

LM2595T-5.0 Original NSC Step Down Switching Regulator IC (5V, 1A, TO 220)

The LM2595T-5.0 is a fixed 5V step down switching regulator IC manufactured by National Semiconductor (NSC). It is designed for efficient DC DC voltage conversion and can deliver up to 1A output current with suitable external components. Operating at a fixed switching frequency of 150kHz, the regulator provides higher efficiency than conventional linear regulators. Its TO 220 package makes it suitable for power supply circuits, embedded electronics, industrial control systems and voltage regulation applications requiring a stable 5V DC output.

Key Features -

• Original National Semiconductor (NSC) regulator IC

• Fixed 5V regulated output

• Up to 1A output current capability

• High efficiency step down switching regulator

• Fixed 150kHz switching frequency

• Wide input voltage range

• Requires relatively few external components

• Built in thermal shutdown protection

• Internal current limiting protection

• TTL compatible shutdown input

• TO 220 through hole package

• Suitable for SMPS and DC DC converter applications

Specifications -

• Part Number: LM2595T-5.0

• Manufacturer: National Semiconductor (NSC)

• Product Type: Step Down Switching Regulator IC

• Regulator Type: Buck Converter

• Output Voltage: 5V Fixed

• Maximum Output Current: 1A

• Input Voltage Range: 4.5V to 40V

• Switching Frequency: 150kHz

• Conversion Type: Non Isolated Step Down

• Protection Features: Thermal Shutdown and Current Limiting

• Shutdown Function: Available

• Package: TO 220

• Number of Pins: 5

• Mounting Type: Through Hole

Applications -

• SMPS power supplies

• DC DC buck converter circuits

• Embedded electronic systems

• Microcontroller power supplies

• Industrial control equipment

• Battery powered electronic devices

• Voltage regulation circuits

• Communication equipment

• Electronic instruments

• General purpose 5V power supplies
