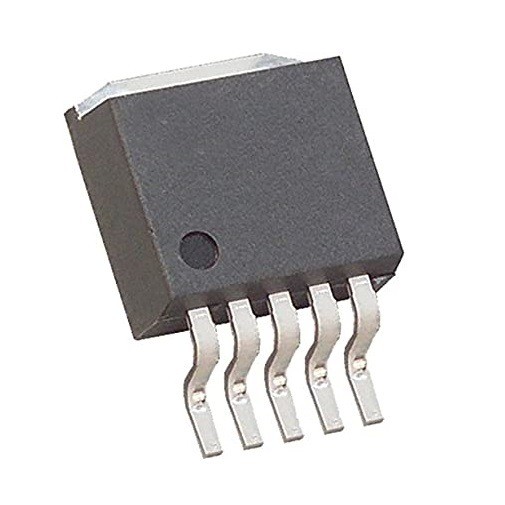

LM2596 12V Original TO-263-5 Step Down Voltage Regulator IC (LM2596 12V)

The LM2596 12V Original is a high efficiency step down switching voltage regulator IC designed for embedded systems, industrial electronics, automotive circuits, and DC-DC power conversion applications. It provides a stable 12V output with high current capability and efficient power regulation in a TO-263-5 surface mount package.

Key Features -

• Original switching voltage regulator IC
• Fixed 12V output voltage
• High efficiency DC-DC buck conversion
• High output current capability
• TO-263-5 surface mount package

Specifications -

• IC type / Product type - Step Down Switching Voltage Regulator IC
• Package type - TO-263-5 SMD IC
• Input voltage - Approx 4.5V to 40V DC
• Output voltage - Fixed 12V DC output
• Output current - Up to 3A output current
• Switching frequency - Approx 150kHz typical
• Efficiency - High efficiency switching regulator operation
• Operating temperature - Approx -40°C to +125°C
• Additional features - Thermal shutdown protection, current limiting protection, internal oscillator, low external component requirement

Applications -

• DC-DC buck converter circuits
• Embedded power supply systems
• Automotive electronics
• Industrial automation equipment
• Battery powered devices
