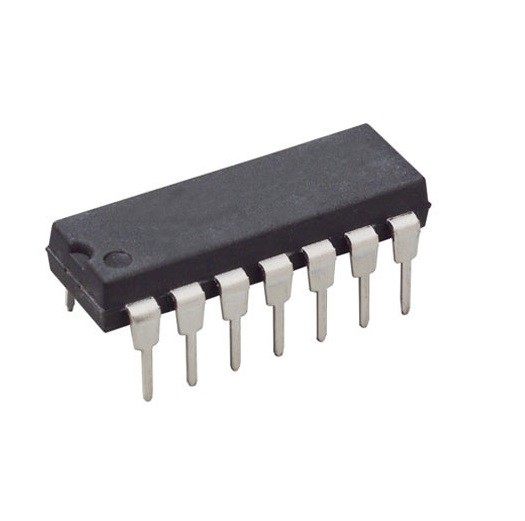

LM2907N 14 Pin Frequency to Voltage Converter IC (LM2907N DIP IC)
The LM2907N 14 Pin Frequency to Voltage Converter IC is a precision analog IC designed to convert input frequency signals into a proportional output voltage. This version includes additional features compared to the 8 pin variant, making it suitable for more flexible and advanced applications such as tachometers, speed sensors, and frequency measurement systems. The DIP 14 pin package allows easy through-hole mounting and reliable integration in electronic circuits.
The LM2907N 14 pin IC is widely used in India for motor speed detection, RPM measurement, automotive electronics, and industrial control systems. It is valued for its stable performance, high accuracy, and ability to operate efficiently with minimal external components.
Key Features
- Frequency to Voltage Conversion: Converts input frequency into proportional DC output.
- Linear Output Response: Ensures accurate and predictable signal conversion.
- Extended Functionality: Additional pins allow enhanced control and flexibility.
- Wide Input Range: Supports a variety of frequency signals.
- Low External Components: Simplifies circuit design.
- Stable Operation: Reliable performance in industrial environments.
- DIP 14 Pin Package: Easy installation and servicing.
Specifications
- IC Type: Frequency to Voltage Converter IC
- Package: 14 Pin DIP IC
- Input Type: Frequency Pulse Input
- Output Type: Analog Voltage Output
- Operating Voltage Range: Suitable for automotive and industrial applications
- Accuracy: High linearity conversion
- Mounting Type: Through-Hole Mounting
- Applications: Tachometer speed sensor RPM measurement frequency conversion industrial control systems
Pinout Configuration (DIP IC Layout)
- 14 pin configuration includes input output timing components and control pins
- Refer to datasheet or circuit diagram for exact pin details
