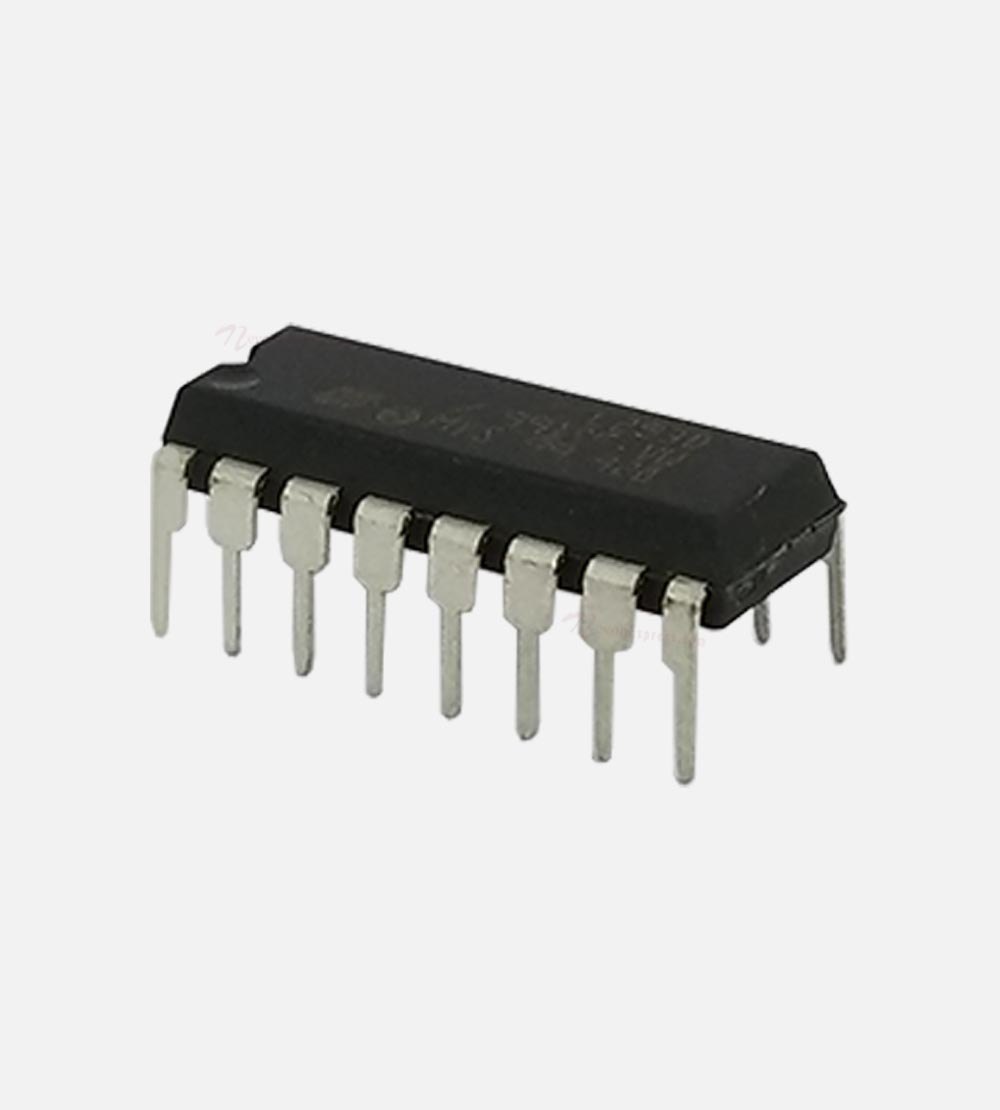

LM2916 16 Pin Frequency to Voltage Converter IC (LM2916 DIP IC)
The LM2916 16 Pin Frequency to Voltage Converter IC is a precision analog IC designed to convert input frequency signals into a proportional analog voltage output. It features an internal zener regulator and improved accuracy, making it ideal for automotive and industrial applications requiring stable and reliable frequency to voltage conversion. The DIP 16 pin package allows easy through-hole mounting and dependable performance in various circuit designs.
The LM2916 IC is widely used in India for tachometer circuits, motor speed detection, RPM measurement, and signal processing systems. It is valued for its high accuracy, stable operation, and enhanced functionality compared to standard frequency converter ICs.
Key Features
- Frequency to Voltage Conversion: Converts input frequency into proportional DC output.
- Built-in Zener Regulator: Provides stable operation in automotive environments.
- High Accuracy: Ensures precise and linear signal conversion.
- Wide Input Range: Supports various frequency inputs.
- Stable Performance: Reliable operation across different conditions.
- DIP 16 Pin Package: Easy installation and servicing.
Specifications
- IC Type: Frequency to Voltage Converter IC
- Package: 16 Pin DIP IC
- Input Type: Frequency Pulse Input
- Output Type: Analog Voltage Output
- Operating Voltage Range: Suitable for automotive and industrial systems
- Accuracy: High linearity conversion
- Mounting Type: Through-Hole Mounting
- Applications: Tachometer RPM measurement speed sensing automotive electronics industrial control systems
Pinout Configuration (DIP IC Layout)
- 16 pin configuration includes input output timing capacitor regulator and control pins
- Refer to datasheet or circuit diagram for exact pin details
