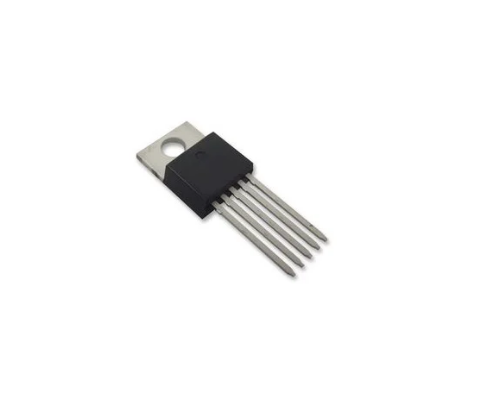

LM2931CT Adjustable Low Dropout Voltage Regulator IC (LM2931CT TO-220 IC)
The LM2931CT Adjustable Low Dropout Voltage Regulator IC is a high-performance LDO regulator designed to provide adjustable regulated output voltage with low dropout and excellent line and load regulation. It is ideal for automotive, battery-powered, and industrial applications where stable output is required even with varying input voltage. The TO-220 package ensures efficient heat dissipation and reliable long-term performance.
The LM2931CT ADJ IC is widely used in India for automotive electronics, embedded systems, portable devices, and regulated power supply circuits. It is valued for its adjustable output capability, low quiescent current, and dependable operation in demanding environments.
Key Features
- Adjustable Output Voltage: Output voltage can be set using external resistors.
- Low Dropout Voltage: Maintains regulation with low input voltage difference.
- Low Quiescent Current: Ideal for battery-powered applications.
- High Stability: Reliable output under varying load and input conditions.
- Built-in Protection: Includes thermal shutdown and short circuit protection.
- TO-220 Package: Ensures effective heat dissipation and durability.
Specifications
- IC Type: Low Dropout Voltage Regulator IC
- Output Type: Adjustable Voltage Output
- Output Current: Suitable for medium current applications
- Dropout Voltage: Low dropout design
- Input Voltage Range: Wide input voltage support
- Package Type: TO-220 Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Automotive electronics embedded systems battery powered devices power supply circuits
Pinout Configuration (TO-220 Layout)
- Vin Input Supply Pin
- Vout Regulated Output Pin
- GND Ground Pin
- Adjustment Pin for voltage setting
- Refer to datasheet or circuit diagram for exact pin details
