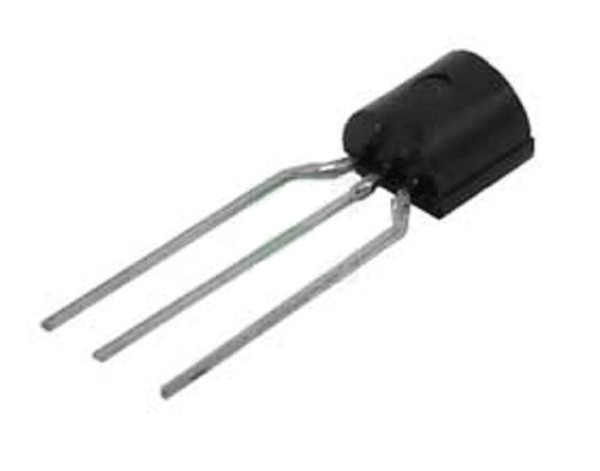

LM2931Z 5V Low Dropout Voltage Regulator IC (LM2931Z TO-92 IC)
The LM2931Z 5V Low Dropout Voltage Regulator IC is a high-performance LDO regulator designed to provide a stable 5V output with low dropout voltage and excellent line and load regulation. It is commonly used in automotive and battery-powered applications where input voltage may vary. The TO-92 package allows compact through-hole mounting and easy integration into space-constrained designs.
The LM2931Z 5V IC is widely used in India for automotive electronics, embedded systems, portable devices, and power supply circuits. It is valued for its low dropout characteristics, low quiescent current, and reliable performance under varying input conditions.
Key Features
- 5V Fixed Output: Provides stable and regulated 5V output voltage.
- Low Dropout Voltage: Ensures proper regulation even at low input voltages.
- Low Quiescent Current: Ideal for battery-powered applications.
- High Stability: Maintains consistent output under load variations.
- Built-in Protection: Includes thermal shutdown and short circuit protection.
- TO-92 Package: Suitable for compact and easy installation.
Specifications
- IC Type: Low Dropout Voltage Regulator IC
- Output Voltage: 5V Fixed Output
- Output Current: Suitable for low to medium current applications
- Dropout Voltage: Low dropout design
- Input Voltage Range: Wide input voltage support
- Package Type: TO-92 Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Automotive electronics battery powered devices embedded systems power supply circuits
Pinout Configuration (TO-92 Layout)
- Input Pin Vin
- Output Pin Vout
- Ground Pin GND
- Refer to datasheet or circuit diagram for exact pin details
