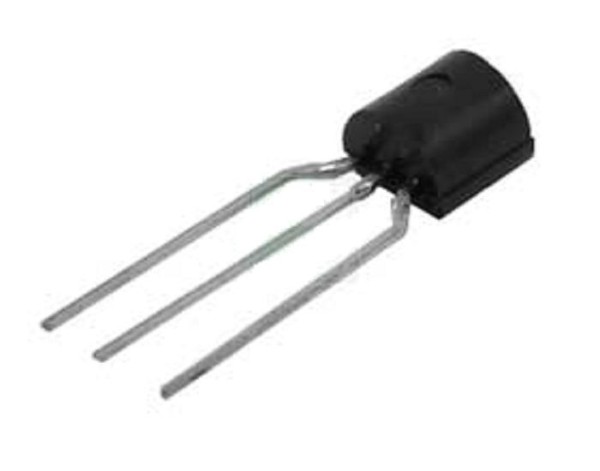

LM2936CZ 5V Low Dropout Voltage Regulator IC (LM2936CZ TO-92 IC)
The LM2936CZ 5V Low Dropout Voltage Regulator IC is a high-performance LDO regulator designed to provide a stable 5V output with ultra low quiescent current and low dropout voltage. It is ideal for battery-powered and low power applications where efficiency and long battery life are critical. The TO-92 package allows compact through-hole mounting and easy integration into small circuit designs.
The LM2936CZ 5V IC is widely used in India for portable electronics, automotive systems, embedded devices, and low power power supply circuits. It is valued for its very low standby current, stable output, and reliable performance in energy-efficient designs.
Key Features
- 5V Fixed Output: Provides stable and regulated 5V output voltage.
- Ultra Low Quiescent Current: Ideal for battery-operated devices.
- Low Dropout Voltage: Ensures proper regulation at low input voltage.
- High Stability: Reliable performance under varying load conditions.
- Built-in Protection: Includes thermal shutdown and short circuit protection.
- TO-92 Package: Suitable for compact and easy installation.
Specifications
- IC Type: Low Dropout Voltage Regulator IC
- Output Voltage: 5V Fixed Output
- Output Current: Suitable for low current applications
- Dropout Voltage: Low dropout design
- Quiescent Current: Very low standby current
- Input Voltage Range: Wide input voltage support
- Package Type: TO-92 Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Portable electronics battery powered devices embedded systems automotive circuits
Pinout Configuration (TO-92 Layout)
- Vin Input Supply Pin
- Vout Regulated Output Pin
- GND Ground Pin
- Refer to datasheet or circuit diagram for exact pin details
