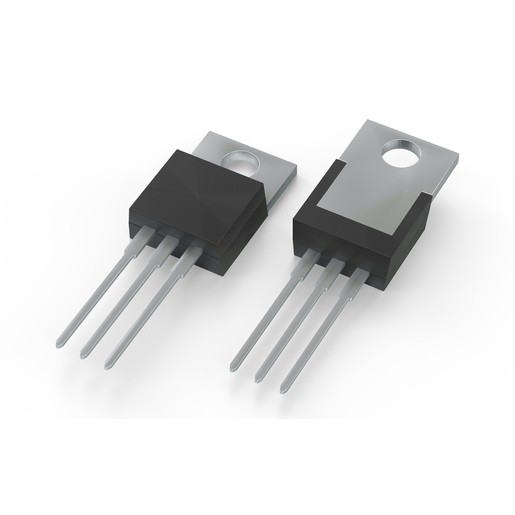

LM2940 5V OG Low Dropout Voltage Regulator IC Original OG (LM2940 TO-220 IC)
The LM2940 5V OG Low Dropout Voltage Regulator IC Original OG is a high-performance LDO regulator designed to provide a stable 5V output with low dropout voltage and excellent line and load regulation. This original OG quality TO-220 package IC ensures reliable performance, long life, and consistent voltage output, making it ideal for automotive and industrial applications.
The LM2940 5V IC is widely used in India for automotive electronics, embedded systems, battery-powered devices, and regulated power supply circuits. It is valued for its ability to maintain stable output even during input voltage fluctuations, along with its robust protection features.
Key Features
- 5V Fixed Output: Provides stable and regulated 5V output voltage.
- Low Dropout Voltage: Maintains regulation with low input voltage difference.
- Original OG Quality: Ensures reliable and long-lasting performance.
- High Stability: Reliable output under varying load conditions.
- Built-in Protection: Includes thermal shutdown and short circuit protection.
- TO-220 Package: Ensures effective heat dissipation and durability.
Specifications
- IC Type: Low Dropout Voltage Regulator IC
- Output Voltage: 5V Fixed Output
- Output Current: Suitable for medium to high current applications
- Dropout Voltage: Low dropout design
- Input Voltage Range: Wide input voltage support
- Package Type: TO-220 Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Automotive electronics embedded systems battery powered devices power supply circuits
Pinout Configuration (TO-220 Layout)
- Vin Input Supply Pin
- Vout Regulated Output Pin
- GND Ground Pin
- Refer to datasheet or circuit diagram for exact pin details
