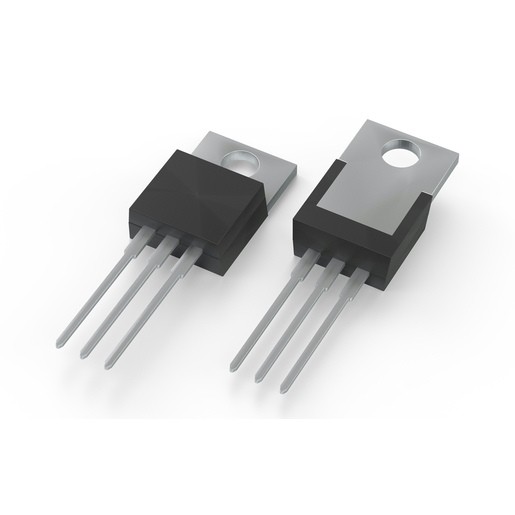

LM2940CT 15V Low Dropout Voltage Regulator IC (LM2940CT TO-220 IC)
The LM2940CT 15V Low Dropout Voltage Regulator IC is a high-performance LDO regulator designed to provide a stable 15V output with low dropout voltage and excellent line and load regulation. It is ideal for automotive, industrial, and power supply applications where reliable voltage regulation is required. The TO-220 package ensures efficient heat dissipation and long-term operational stability.
The LM2940CT 15V IC is widely used in India for automotive electronics, embedded systems, battery-powered devices, and regulated power supply circuits. It is valued for its ability to maintain stable output under fluctuating input conditions and its robust protection features.
Key Features
- 15V Fixed Output: Provides stable and regulated 15V output voltage.
- Low Dropout Voltage: Maintains regulation with minimal input-output difference.
- High Stability: Reliable output under varying load conditions.
- Built-in Protection: Includes thermal shutdown and short circuit protection.
- Suitable for Automotive Use: Handles voltage variations effectively.
- TO-220 Package: Ensures effective heat dissipation and durability.
Specifications
- IC Type: Low Dropout Voltage Regulator IC
- Output Voltage: 15V Fixed Output
- Output Current: Suitable for medium to high current applications
- Dropout Voltage: Low dropout design
- Input Voltage Range: Wide input voltage support
- Package Type: TO-220 Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Automotive electronics embedded systems battery powered devices power supply circuits
Pinout Configuration (TO-220 Layout)
- Vin Input Supply Pin
- Vout Regulated Output Pin
- GND Ground Pin
- Refer to datasheet or circuit diagram for exact pin details
