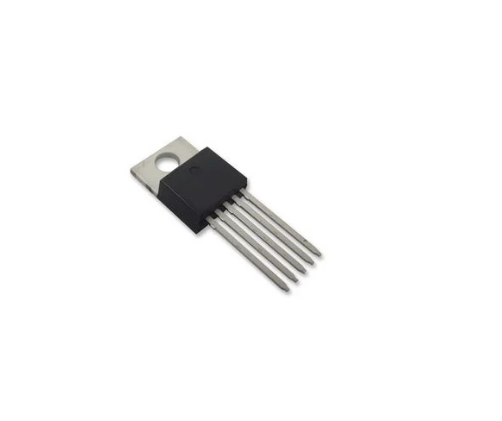

LM2941CT P+ Adjustable Low Dropout Voltage Regulator IC (LM2941CT TO-220 IC)
The LM2941CT P+ Adjustable Low Dropout Voltage Regulator IC is a high-performance LDO regulator designed to provide adjustable regulated output voltage with low dropout and excellent line and load regulation. It is ideal for automotive, industrial, and embedded system applications where precise voltage control is required. The TO-220 package ensures efficient heat dissipation and reliable long-term operation.
The LM2941CT P+ IC is widely used in India for automotive electronics, power supply circuits, battery-operated systems, and industrial control applications. It is valued for its adjustable output capability, low quiescent current, and stable performance under varying input conditions.
Key Features
- Adjustable Output Voltage: Output voltage can be set using external resistors.
- Low Dropout Voltage: Maintains regulation with minimal input-output difference.
- High Stability: Reliable output under varying load conditions.
- Low Quiescent Current: Suitable for battery-powered applications.
- Built-in Protection: Includes thermal shutdown and short circuit protection.
- TO-220 Package: Ensures effective heat dissipation and durability.
Specifications
- IC Type: Adjustable Low Dropout Voltage Regulator IC
- Output Type: Adjustable Voltage Output
- Output Current: Suitable for medium to high current applications
- Dropout Voltage: Low dropout design
- Input Voltage Range: Wide input voltage support
- Package Type: TO-220 Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Automotive electronics power supplies embedded systems battery operated devices industrial circuits
Pinout Configuration (TO-220 Layout)
- Vin Input Supply Pin
- Vout Regulated Output Pin
- GND Ground Pin
- Adjust Pin for voltage setting
- Refer to datasheet or circuit diagram for exact pin details
