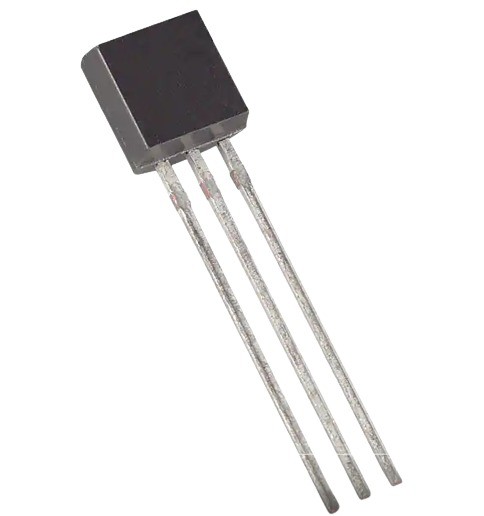

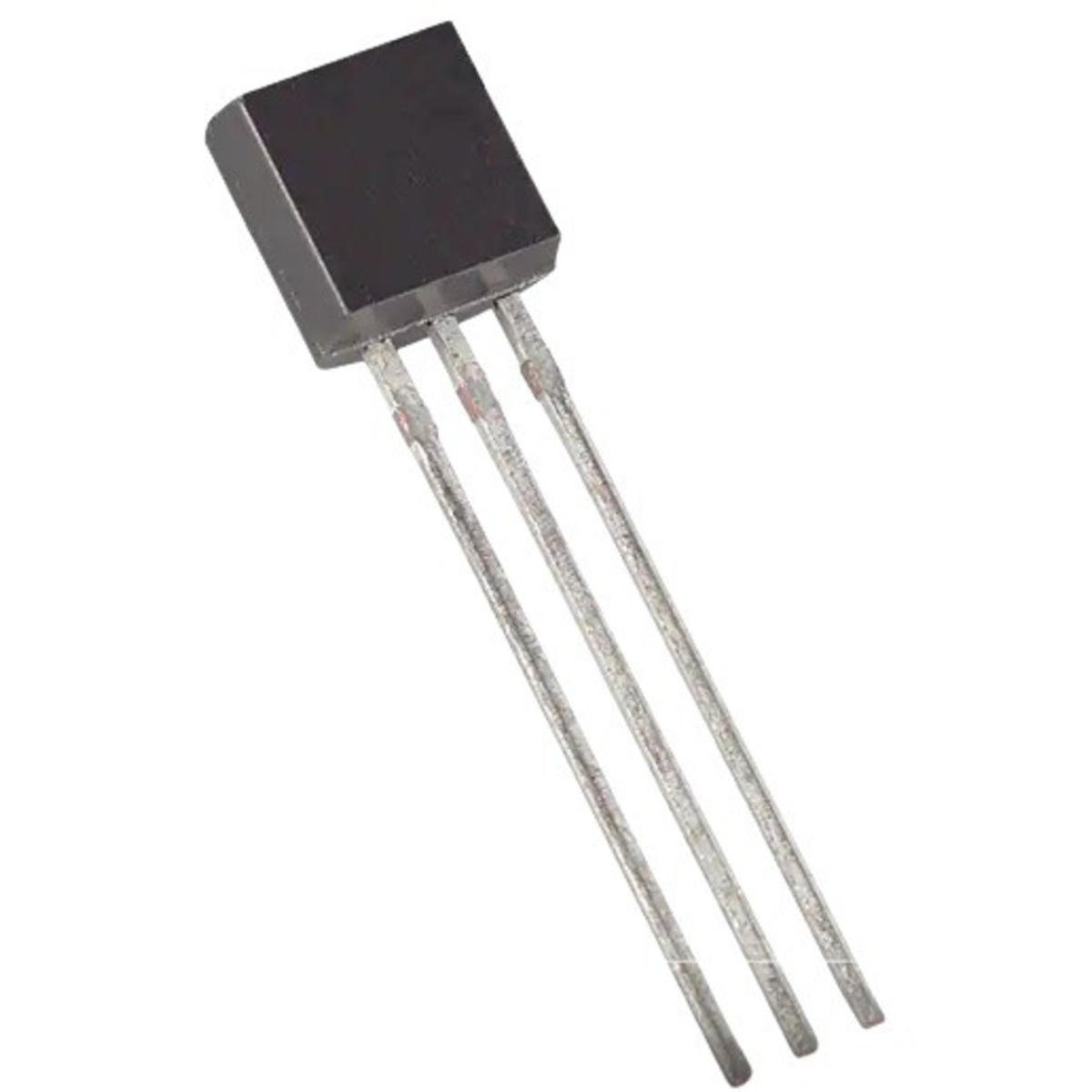

LM2950 5V Low Dropout Voltage Regulator IC (LM2950 TO-92 IC)
The LM2950 5V Low Dropout Voltage Regulator IC is a high-performance LDO regulator designed to provide a stable 5V output with low dropout voltage and low quiescent current. It is ideal for battery-powered, portable, and low power electronic applications where efficiency and long battery life are critical. The TO-92 package allows compact through-hole mounting and easy integration into small circuit designs.
The LM2950 5V IC is widely used in India for microcontroller circuits, portable electronics, sensor modules, and regulated power supply designs. It is valued for its low power consumption, stable output, and reliable operation in energy-efficient applications.
Key Features
- 5V Fixed Output: Provides stable and regulated 5V output voltage.
- Low Dropout Voltage: Ensures proper regulation at low input voltage.
- Low Quiescent Current: Ideal for battery-operated and portable devices.
- High Stability: Reliable performance under varying load conditions.
- Built-in Protection: Includes thermal shutdown and short circuit protection.
- TO-92 Package: Suitable for compact and easy installation.
Specifications
- IC Type: Low Dropout Voltage Regulator IC
- Output Voltage: 5V Fixed Output
- Output Current: Suitable for low current applications
- Dropout Voltage: Low dropout design
- Input Voltage Range: Wide input voltage support
- Package Type: TO-92 Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Microcontroller circuits portable electronics sensor modules embedded systems power supply circuits
Pinout Configuration (TO-92 Layout)
- Vin Input Supply Pin
- Vout Regulated Output Pin
- GND Ground Pin
- Refer to datasheet or circuit diagram for exact pin details
