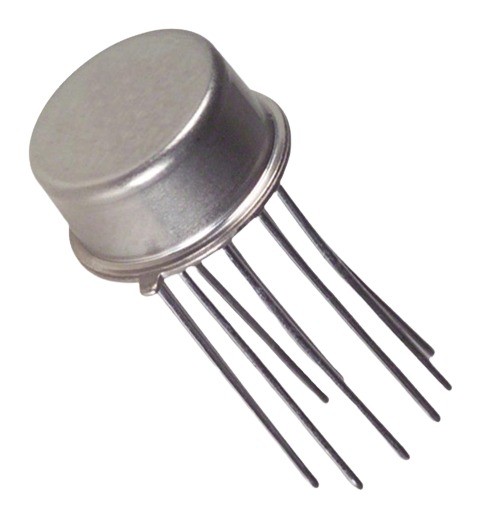

LM747CH TO99 Metal Dual Operational Amplifier IC (LM747CH IC)

The LM747CH is a dual operational amplifier IC designed for analog signal processing, amplification, filtering, and instrumentation applications in electronic circuits and industrial systems. It provides reliable dual op amp performance in a durable TO99 metal package.

Key Features -

• Dual operational amplifier IC

• TO99 metal can package

• Wide analog signal amplification support

• Low noise performance

• Reliable analog circuit operation

• Durable metal package construction

Specifications -

• Product type - Operational Amplifier IC

• Model - LM747CH

• IC type - Dual operational amplifier

• Package type - TO99 metal package

• Mounting type - Through hole mounting

• Supply voltage - Approx ±5V to ±18V

• Number of amplifiers - Dual op amp

• Input type - Differential input

• Operating temperature - Approx industrial operating range

• Additional features - Stable gain performance, low distortion, reliable analog operation

Applications -

• Analog signal amplification

• Active filter circuits

• Audio processing systems

• Instrumentation circuits

• Industrial electronic equipment

Pinout Configuration -

• Input pins - Inverting and non inverting inputs

• Output pins - Amplifier outputs

• VCC positive - Positive supply voltage

• VCC negative - Negative supply voltage

• Offset null pins - Offset adjustment connections
