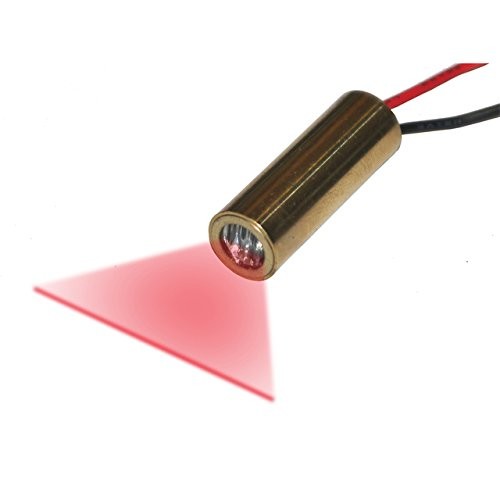

LM9R635HL 635nm Red Laser Line Generator 3V D9mm 5mW (LM9R635HL Laser Module)
The LM9R635HL 635nm Red Laser Line Generator 3V D9mm 5mW is a compact semiconductor laser module designed to project a straight red laser line for alignment and positioning applications. It operates at a wavelength of 635nm, which provides higher visibility compared to standard 650nm lasers, and delivers a stable output power of 5mW. The integrated optical lens system converts the laser dot into a uniform line, making it ideal for precision marking and detection tasks.
This laser line generator is widely used in India for industrial electronics, alignment systems, automation equipment, and embedded systems. It is valued for its clear line projection, low voltage operation, and reliable performance in applications such as machine alignment, scanning systems, and measurement setups.
Key Features
- 635nm Red Laser Output: High visibility compared to standard red lasers
- Line Projection Optics: Generates straight laser line instead of dot
- 5mW Output Power: Stable and controlled emission
- Low Voltage Operation: Works on 3V supply
- Compact D9mm Housing: Easy mounting and integration
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Device Type: Laser line generator module
- Wavelength: 635nm
- Output Power: 5mW
- Operating Voltage: 3V
- Beam Type: Line beam projection
- Diameter: Approx 9mm
- Output Mode: Continuous wave
- Mounting Type: Panel mount or embedded integration
- Applications: Laser alignment positioning systems machine vision industrial electronics embedded systems
Pinout Configuration Module Layout
- Positive supply pin
- Ground pin
- Optical output aperture for laser line emission
