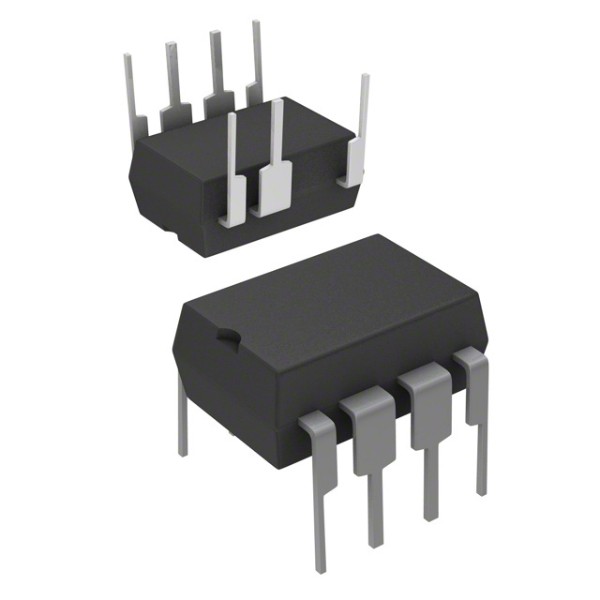

LNK306PN Offline Switcher IC (DIP 8 Package)

The LNK306PN is an offline switching power supply IC from the LinkSwitch TN family, designed for compact low power AC to DC power supplies. It integrates a high voltage power MOSFET with control, current limiting, and protection circuitry, helping reduce external component count in non isolated and other low power converter designs.

Key Features -

• LinkSwitch TN offline switcher IC

• Integrated high voltage power MOSFET

• Designed for low power AC to DC conversion

• Suitable for non isolated power supply designs

• Built in current limiting

• Integrated thermal shutdown protection

• Internal oscillator and control circuitry

• Low external component requirement

• Suitable for buck and buck boost converter designs

• DIP 8 through hole package

Specifications -

• Part Number: LNK306PN

• Series: LinkSwitch TN

• Component Type: Offline Switcher IC

• Integrated Switch: High Voltage Power MOSFET

• Converter Applications: Buck, Buck Boost and Flyback Configurations

• Current Limiting: Integrated

• Thermal Protection: Integrated

• Package Type: DIP 8

• Mounting Type: Through Hole

• Electrical Ratings: Refer to the exact manufacturer datasheet

Applications -

• Low power AC to DC power supplies

• Appliance control power supplies

• Auxiliary power supplies

• Standby power supplies

• LED driver circuits

• Industrial control electronics

• Smart meter power supplies

• Non isolated power converters

• Electronic control boards
