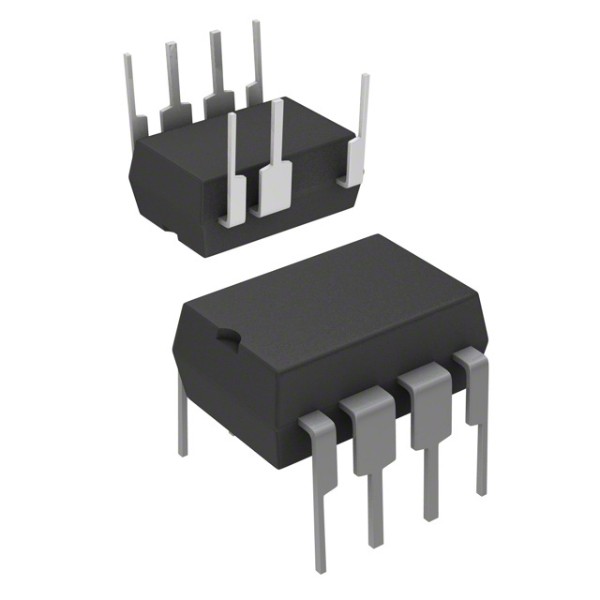

LNK364PN LinkSwitch XT Offline Switcher IC (DIP 8 Package)

The LNK364PN is an offline switching power supply IC from the LinkSwitch XT family, designed for compact low power AC to DC power supplies. It integrates a high voltage power MOSFET with oscillator, current limiting, thermal shutdown, and control circuitry, helping reduce component count in flyback power supply designs.

Key Features -

• LinkSwitch XT offline switcher IC

• Integrated high voltage power MOSFET

• Designed for low power AC to DC conversion

• Suitable for isolated and non isolated converter designs

• Built in current limiting

• Integrated thermal shutdown protection

• Auto restart protection for fault conditions

• Internal oscillator and control circuitry

• Low external component requirement

• Suitable for compact power supply designs

• DIP 8 through hole package

Specifications -

• Part Number: LNK364PN

• Series: LinkSwitch XT

• Component Type: Offline Switcher IC

• Integrated Switch: High Voltage Power MOSFET

• Converter Application: Offline AC to DC Power Conversion

• Current Limiting: Integrated

• Thermal Protection: Integrated

• Auto Restart Protection: Supported

• Package Type: DIP 8

• Mounting Type: Through Hole

• Electrical Ratings: Refer to the exact manufacturer datasheet

Applications -

• AC to DC adapters

• Auxiliary power supplies

• Standby power supplies

• Appliance control power supplies

• Industrial control electronics

• Low power flyback converters

• LED power supply circuits

• Electronic control boards

• Low power embedded power supplies
