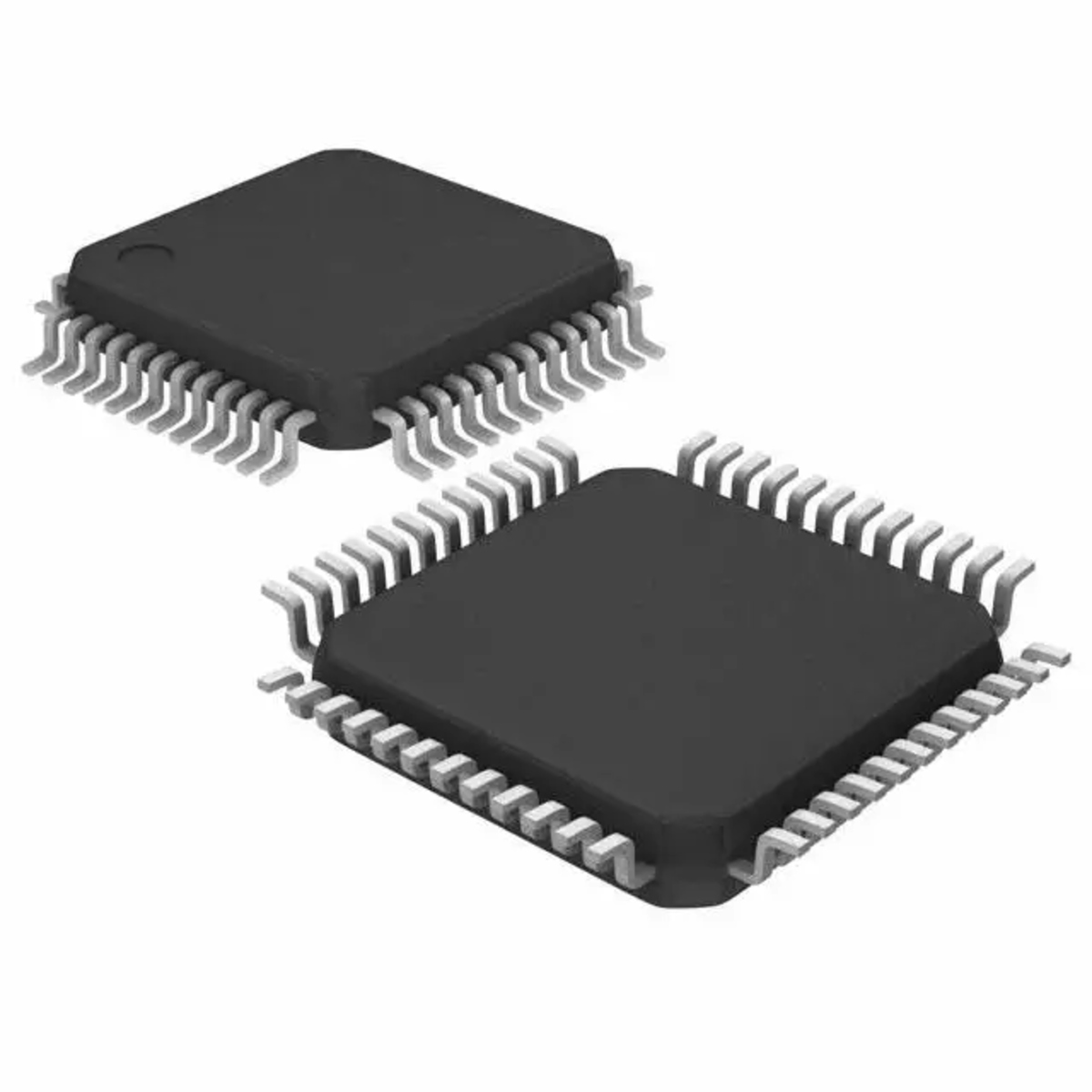

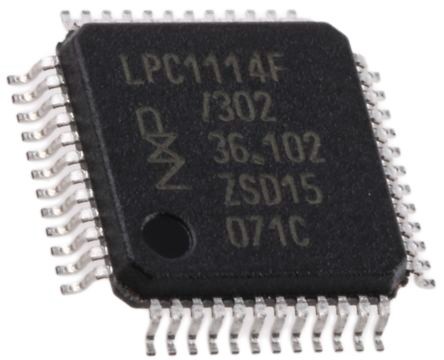

LPC1114FBD48 LQFP-48 ARM Cortex-M0 Microcontroller IC 32kB Flash 8kB SRAM (LPC1114FBD48)
The LPC1114FBD48 is a low power ARM Cortex-M0 based microcontroller IC designed for embedded control, industrial automation, communication systems, and general purpose electronic applications. It features a 32-bit ARM Cortex-M0 core, 32kB Flash memory, 8kB SRAM, and multiple communication interfaces in a compact LQFP-48 package.
Key Features -
- ARM Cortex-M0 32-bit microcontroller
- 32kB onboard Flash memory
- 8kB SRAM memory
- LQFP-48 surface mount package
- Multiple communication interfaces and GPIO support
Specifications -
- IC type / Product type - ARM Cortex-M0 Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - LQFP-48 SMD IC
- Supply voltage - Approx 1.8V to 3.6V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power embedded operation
- Frequency / propagation delay - CPU clock frequency up to approx 50MHz
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - ARM Cortex-M0 core, 32kB Flash memory, 8kB SRAM, UART, SPI, I2C interfaces, timers, PWM support, ADC functionality, programmable GPIO pins
Applications -
- Embedded control systems
- Industrial automation equipment
- Consumer electronic devices
- Communication interface systems
- IoT and microcontroller based projects
Pinout Configuration -
- Pin 1 - GPIO or communication interface pin
- Pin 2 - GPIO or ADC function pin
- Pin 3 - Ground connection
- Additional pins - Power supply pins, reset pin, oscillator pins, UART pins, SPI pins, I2C pins, PWM outputs, additional GPIO pins
