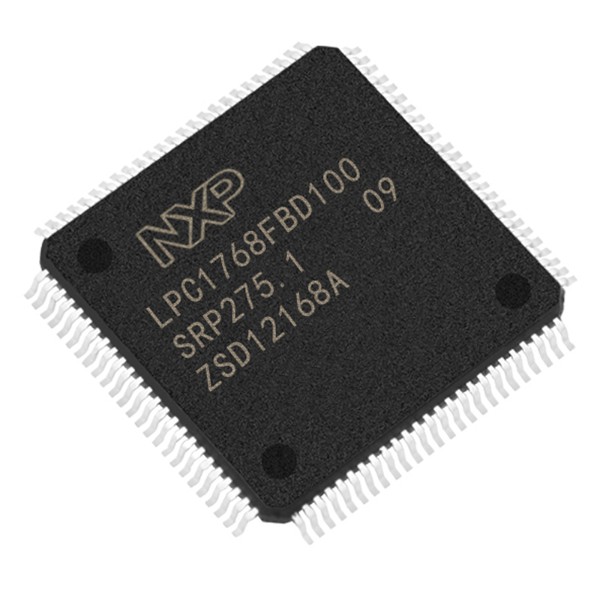

LPC1768FBD100 LQFP-100 ARM Cortex-M3 Microcontroller IC 100MHz 512KB Flash (LPC1768FBD100)
The LPC1768FBD100 is a high performance ARM Cortex-M3 based 32-bit microcontroller IC designed for embedded control, industrial automation, communication systems, and advanced electronic applications. It features a single-core ARM Cortex-M3 processor running up to 100MHz with 512KB Flash memory, making it suitable for high speed embedded processing and real time control applications.
Key Features -
- ARM Cortex-M3 32-bit single-core microcontroller
- CPU clock speed up to 100MHz
- 512KB onboard Flash memory
- LQFP-100 surface mount package
- Multiple communication and peripheral interfaces
Specifications -
- IC type / Product type - ARM Cortex-M3 Microcontroller IC
- Logic family / Component type - Embedded Microcontroller IC
- Package type - LQFP-100 SMD IC
- Supply voltage - Approx 2.4V to 3.6V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - CMOS logic output levels
- Current rating - Low power embedded operation
- Frequency / propagation delay - CPU clock frequency up to approx 100MHz
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - ARM Cortex-M3 single-core processor, 512KB Flash memory, SRAM support, Ethernet interface, USB support, CAN interface, UART, SPI, I2C interfaces, ADC, DAC, PWM functionality, programmable GPIO pins
Applications -
- Industrial automation systems
- Embedded control applications
- Communication and networking devices
- Robotics and IoT systems
- Advanced data acquisition systems
Pinout Configuration -
- Pin 1 - GPIO or communication interface pin
- Pin 2 - Power supply pin
- Pin 3 - Ground connection
- Additional pins - Reset pin, oscillator pins, Ethernet pins, USB pins, CAN interface pins, UART pins, SPI pins, I2C pins, ADC inputs, DAC outputs, PWM pins, additional GPIO pins
