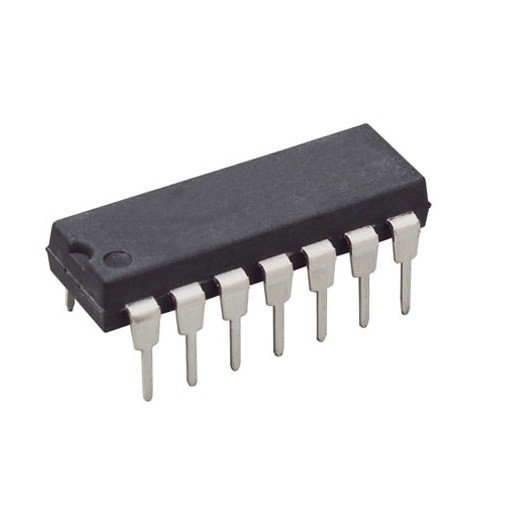

LT1014CN Quad Precision Operational Amplifier DIP-14 (LT1014CN IC)
The LT1014CN is a high-performance quad precision operational amplifier that serves as a significant upgrade to industry-standard 14-pin configurations like the LM324. Housed in a 14-pin DIP package, it integrates four precision amplifiers on a single chip, featuring a low offset voltage of 150µV and a low drift of 2µV/°C. This allows for high-accuracy circuit designs in a space-saving quad format without the performance trade-offs typical of older multi-channel op-amps.
In the Indian market, this IC is a staple for industrial instrumentation, thermocouple amplifiers, and 4mA-to-20mA current loop transmitters. Its design allows it to operate from a single 5V supply, where both its input common-mode range and output swing include ground, making it ideal for precision signal conditioning in low-voltage, battery-powered systems.
Key Features
- Precision Quad Architecture: Four amplifiers with specifications matching single precision op-amps in one 14-pin package.
- Single-Supply Efficiency: Fully specified for single 5V operation, with inputs and outputs that extend to ground.
- Low Power Consumption: Each amplifier uses only 350µA, reducing the power footprint for portable devices.
- High Drive Capability: The output stage can source and sink over 20mA, allowing it to drive heavy loads while maintaining gain.
- Drop-in Upgrade: Pin-compatible with LM324, LM348, and OP-11, making it easy to improve legacy designs.
- Superior Noise Specs: Features low voltage noise (0.55µVp-p) and an excellent common-mode rejection of 117dB.
Specifications
- IC Type: Quad Precision Operational Amplifier
- Number of Channels: 4
- Gain Bandwidth Product: 1.0 MHz
- Slew Rate: 0.4 V/µs
- Input Offset Voltage: 150 µV (Maximum)
- Input Bias Current: 15 nA (Typical)
- Supply Voltage Range: 4V to 44V (Single) or ±2V to ±22V (Dual)
- Package Type: PDIP-14 (Through-Hole)
- Operating Temperature: 0°C to 70°C
Pinout Configuration (14-Pin DIP)
- Pin 1 (OUTPUT A): Output of Amp A
- Pin 2 (–IN A): Inverting Input of Amp A
- Pin 3 (+IN A): Non-Inverting Input of Amp A
- Pin 4 (V+): Positive Supply Voltage
- Pin 5 (+IN B): Non-Inverting Input of Amp B
- Pin 6 (–IN B): Inverting Input of Amp B
- Pin 7 (OUTPUT B): Output of Amp B
- Pin 8 (OUTPUT C): Output of Amp C
- Pin 9 (–IN C): Inverting Input of Amp C
- Pin 10 (+IN C): Non-Inverting Input of Amp C
- Pin 11 (V–): Negative Supply or Ground
- Pin 12 (+IN D): Non-Inverting Input of Amp D
- Pin 13 (–IN D): Inverting Input of Amp D
- Pin 14 (OUTPUT D): Output of Amp D
