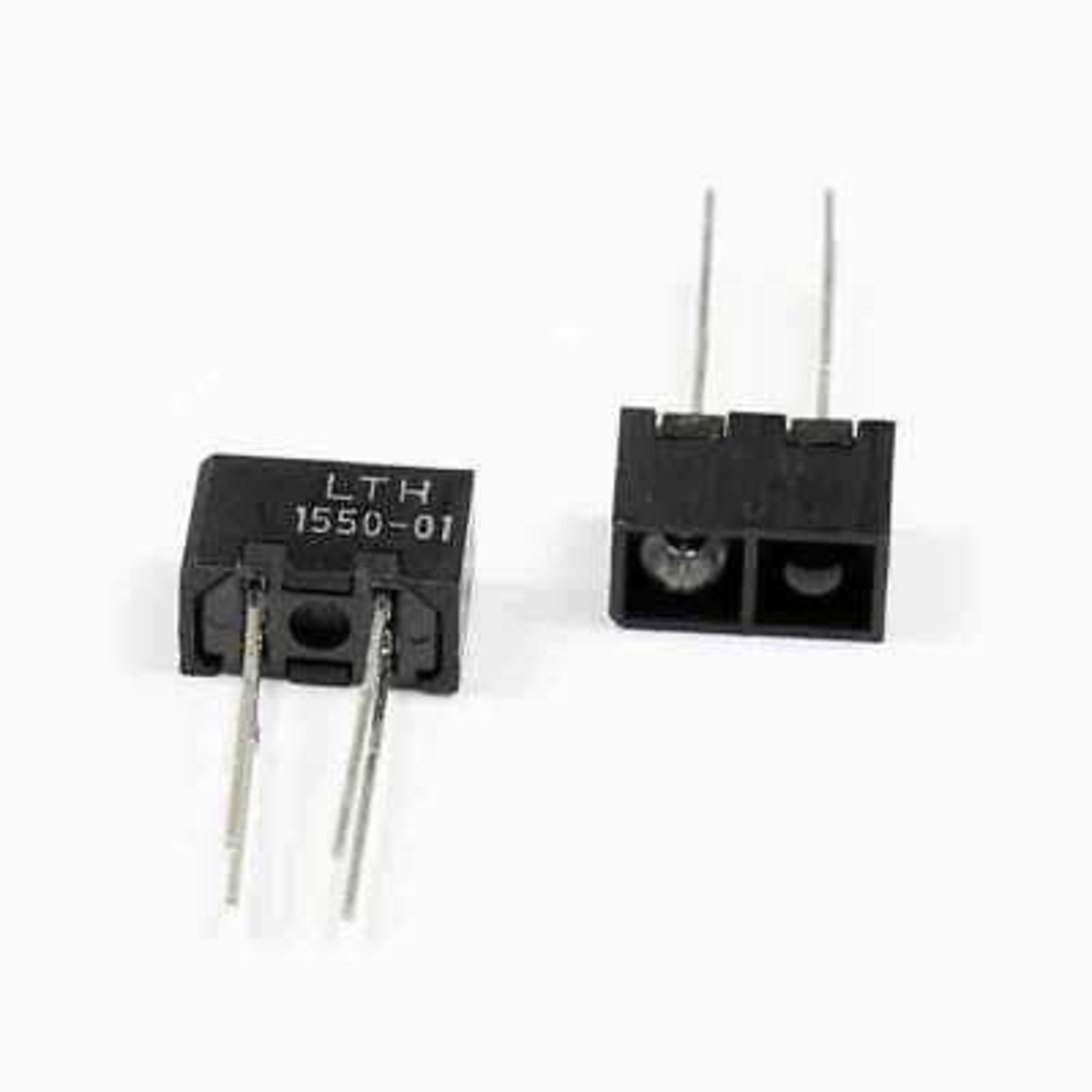

LTH155001 Infrared Transmitter Receiver Sensor DIP (LTH155001 IR Sensor Module)
The LTH155001 Infrared Transmitter Receiver Sensor is a reflective optical sensor that integrates an infrared emitting diode and a phototransistor in a single compact package. It works by emitting IR light and detecting the reflected signal from nearby objects, enabling non contact sensing and switching. The sensor provides fast response and reliable detection performance for precision applications.
The LTH155001 sensor is widely used in India for embedded systems, robotics, industrial electronics, and automation projects. It is valued for its compact design, fast switching speed, and efficient performance in applications such as line following robots, object detection, and counting systems.
Key Features
- Integrated IR Transmitter and Receiver: Compact reflective sensing design
- Non Contact Detection: Reliable object sensing without physical contact
- Fast Switching Response: Suitable for high speed applications
- Phototransistor Output: Stable and accurate signal detection
- Compact DIP Package: Easy PCB mounting
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Reflective optical sensor
- Sensing Method: Infrared reflection detection
- Output Type: Phototransistor output
- Collector Emitter Voltage: Up to 30V
- Collector Current: Up to 20mA
- Forward Current: Up to 60mA
- Operating Temperature: -25 to 85 degree C
- Mounting Type: Through hole DIP
- Package Type: 2 pin or DIP optical sensor
- Applications: Line following robots object detection counting systems industrial electronics embedded systems
Pinout Configuration DIP Layout
- Anode pin of IR emitter
- Cathode pin of IR emitter
- Collector pin of phototransistor
- Emitter pin of phototransistor
