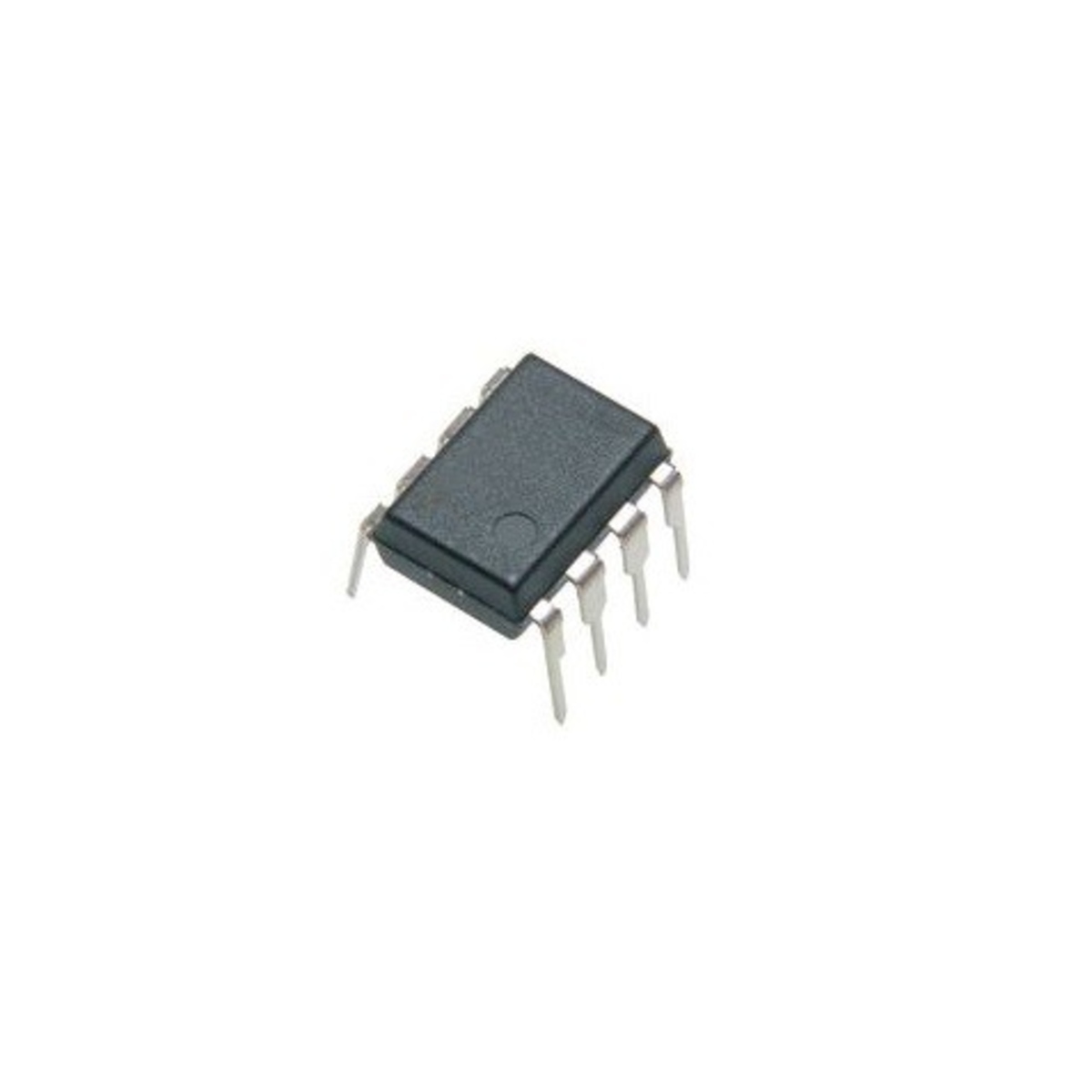

MAX253CPA Transformer Driver IC (DIP 8, Isolated Power Supply)

The MAX253CPA is a transformer driver integrated circuit designed for isolated power supply applications. It drives the primary winding of a transformer from a DC supply, enabling the generation of isolated power for communication interfaces and other electronic circuits. It is suitable for compact isolated power supply designs where electrical isolation is required.

Key Features -

• Transformer driver for isolated power supply circuits

• Designed to drive an external transformer

• Supports isolated power generation for interface circuits

• Suitable for compact power supply designs

• Useful in communication and industrial electronics

Specifications -

• Part Number: MAX253CPA

• Component Type: Transformer Driver IC

• Package: 8 Pin Plastic DIP

• Main Function: Transformer primary drive

• Supply Voltage and Switching Characteristics: Refer to the manufacturer datasheet

Applications -

• Isolated power supplies for communication interfaces

• RS232 and RS485 interface power circuits

• Industrial control equipment

• Data acquisition systems

• Electronic circuits requiring galvanic isolation

Specifications -

• Manufacturer: Maxim Integrated, now part of Analog Devices

• Supply Voltage: 3.3V or 5V

• Selectable Switching Frequency: 200kHz or 350kHz

• Transformer Drive: Center tapped primary

• Power Capability: Up to 1W, depending on the transformer and circuit design
