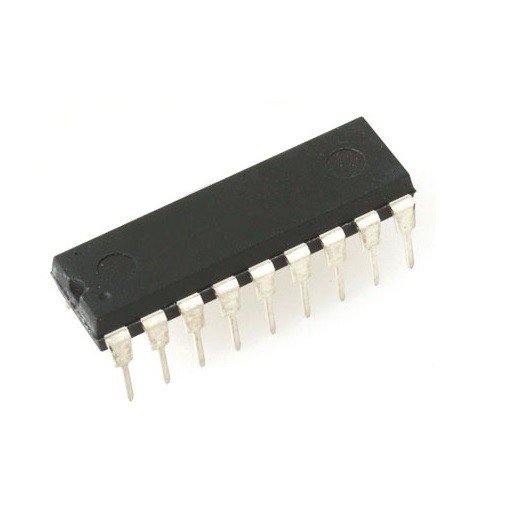

MAX3222CPN Dual RS232 Transceiver IC (DIP 18 Package)

The MAX3222CPN is a dual RS232 transceiver IC designed for serial communication between logic level systems and RS232 devices. It integrates two transmitters and two receivers with an internal charge pump, allowing RS232 voltage levels to be generated from a low voltage single supply.

Key Features -

• Dual RS232 transceiver

• 2 transmitters and 2 receivers

• Integrated charge pump circuitry

• Operates from a single low voltage supply

• 3V to 5.5V supply operation

• RS232 compatible communication

• Low power operation

• Shutdown control for reduced power consumption

• Suitable for microcontroller serial communication

• DIP 18 through hole package

Specifications -

• Part Number: MAX3222CPN

• Component Type: RS232 Transceiver

• Number of Drivers: 2

• Number of Receivers: 2

• Supply Voltage: 3V to 5.5V

• Data Rate: Up to 120 kbps

• Charge Pump: Integrated

• Communication Standard: RS232

• Package Type: DIP 18

• Number of Pins: 18

• Mounting Type: Through Hole

Applications -

• RS232 serial communication

• Microcontroller communication circuits

• Embedded systems

• Industrial control equipment

• Data acquisition equipment

• Serial communication interfaces

• Computer peripheral interfaces

• Portable electronic equipment

• Instrumentation systems
