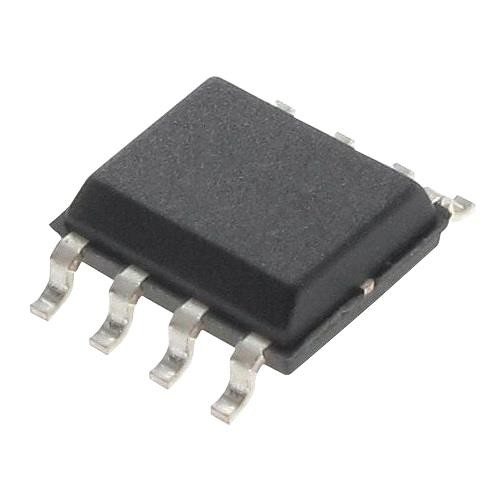

MAX690ACSA Microprocessor Supervisory IC (SOIC 8, Reset and Watchdog)

The MAX690ACSA is a microprocessor supervisory IC designed to monitor power supply voltage and help ensure reliable system startup and operation. It provides reset control during power supply fluctuations, a watchdog timer to detect software execution failures, and battery backup support for compatible memory systems. Its compact SOIC 8 package makes it suitable for embedded electronics and industrial control designs.

Key Features -

• Microprocessor power supply monitoring

• Reset output during power up and undervoltage conditions

• Watchdog timer for monitoring processor activity

• Power failure warning output

• Battery backup switching support for compatible memory circuits

• Low power supervisory operation

• Compact SOIC 8 surface mount package

Specifications -

• Part Number: MAX690ACSA

• IC Type: Microprocessor Supervisory Circuit

• Package: SOIC 8

• Primary Function: Power supply monitoring and reset control

• Watchdog Function: Integrated watchdog timer

• Power Failure Detection: Integrated power fail comparator

• Backup Supply: Supports battery backed memory applications

• Reset Function: Active low reset output

• Supply voltage thresholds and timing characteristics: Refer to the exact manufacturer datasheet

Applications -

• Microprocessor and microcontroller systems

• Embedded control boards

• Industrial automation equipment

• Battery backed memory circuits

• Computer and communication equipment

• Power supply monitoring systems

• Watchdog protection for embedded firmware
