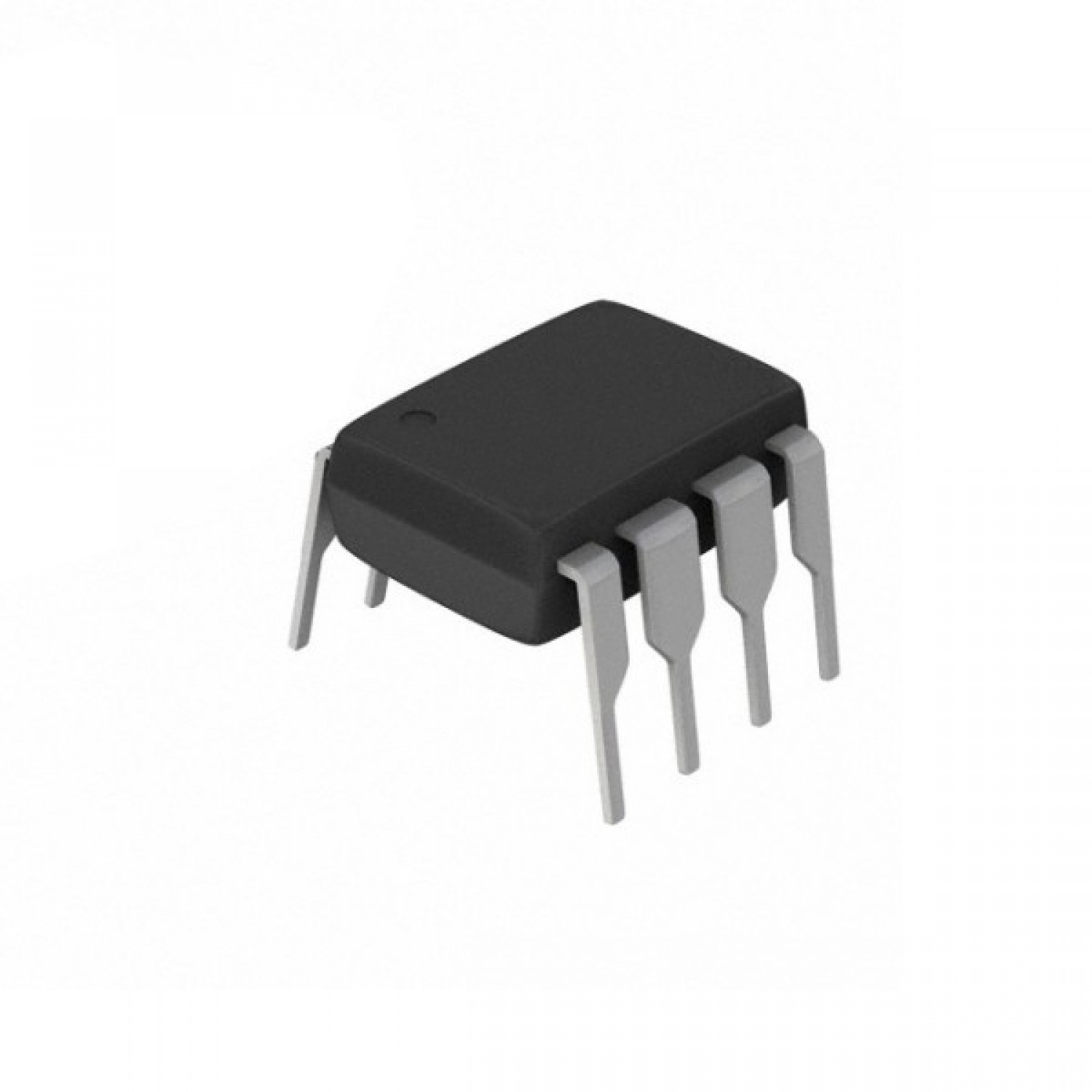

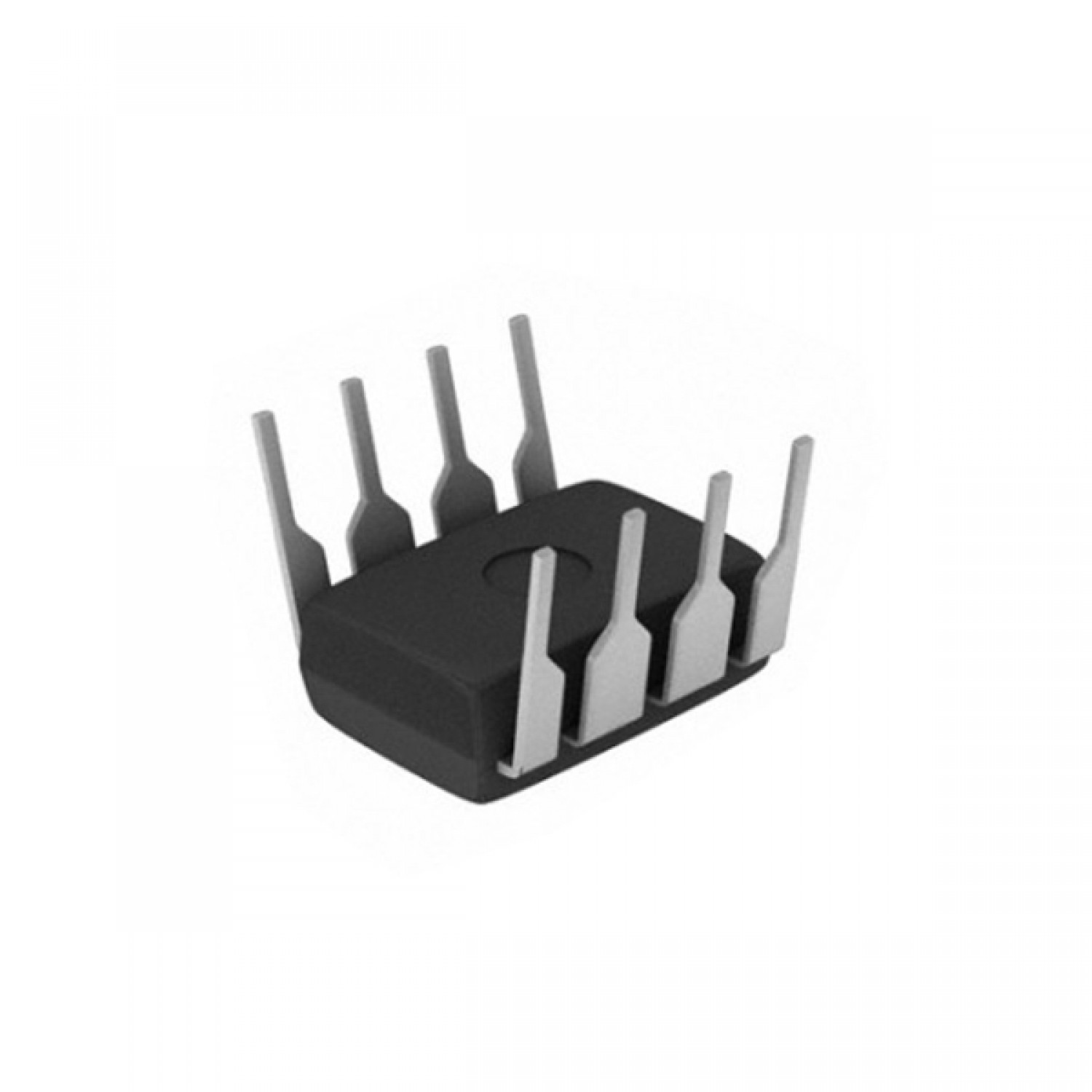

MAX813LCPA Microprocessor Supervisory Circuit IC DIP-8 (Voltage Monitor IC, Reset Supervisor IC, Watchdog Timer IC)

The MAX813LCPA is a microprocessor supervisory circuit designed to enhance system reliability by monitoring supply voltage levels and generating reset signals during power-up, power-down, and brownout conditions. It integrates a precision voltage monitor, watchdog timer, and reset generator into a single DIP-8 package, making it ideal for microcontroller systems, embedded electronics, industrial controls, and computer-based applications.

Key Features -

• Precision power supply monitoring

• Automatic reset generation

• Integrated watchdog timer

• Brownout protection

• Power-fail detection capability

• Low power consumption

• DIP-8 through hole package

Specifications -

• Product type - Microprocessor supervisory IC

• Model - MAX813LCPA

• Function - Voltage monitoring and reset supervision

• Package type - DIP-8

• Mounting type - Through Hole Mount

• Reset output - Active reset signal

• Watchdog timer - Integrated

• Supply monitoring - Precision voltage detection

• Power-fail protection - Supported

• Additional features - Reliable startup control and system fault recovery

Applications -

• Microcontroller systems

• Embedded electronics

• Industrial automation equipment

• Data acquisition systems

• Communication devices

• Computer peripherals

• Power-sensitive electronic circuits
