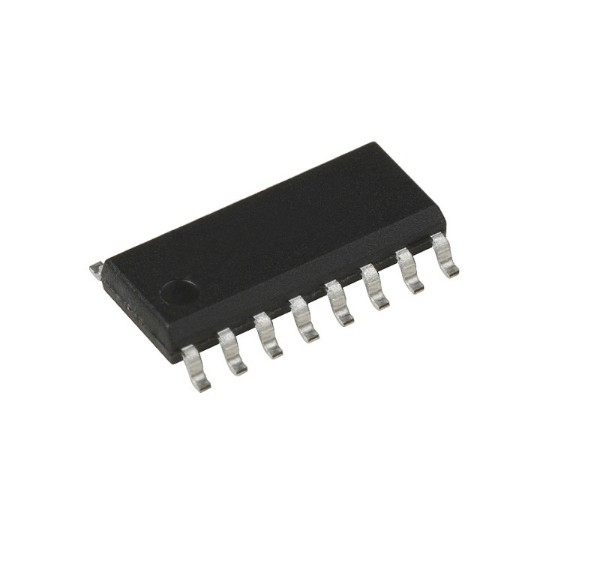

MAX202CSE SOIC-16 RS-232 Line Driver and Receiver IC (MAX202CSE)
The MAX202CSE is an RS-232 communication interface IC designed for serial data communication, voltage level conversion, and embedded communication systems. It integrates dual line drivers and dual receivers with internal charge pump circuitry, making it suitable for microcontroller interfacing, industrial communication, and serial port applications.
Key Features -
- RS-232 line driver and receiver IC
- Integrated dual transmitters and receivers
- Internal charge pump voltage converter
- SOIC-16 surface mount package
- Low power serial communication operation
Specifications -
- IC type / Product type - RS-232 Interface IC
- Logic family / Component type - Communication Interface IC
- Package type - SOIC-16 SMD IC
- Supply voltage - Approx 5V DC operation
- Input voltage - TTL or CMOS compatible logic input levels
- Output voltage - RS-232 compatible output voltage levels
- Current rating - Low power communication operation
- Frequency / propagation delay - High speed serial data communication support
- Operating temperature - Approx 0 to +70 degree C
- Additional important specifications - Dual RS-232 drivers and receivers, internal charge pump capacitors support, low power shutdown mode, ESD protection support, full duplex serial communication capability
Applications -
- RS-232 serial communication systems
- Microcontroller interfacing circuits
- Industrial automation equipment
- Embedded communication systems
- Computer serial port interfaces
Pinout Configuration -
- Pin 1 - Charge pump capacitor connection
- Pin 2 - Receiver input pin
- Pin 3 - Transmitter output pin
- Additional pins - TTL logic interface pins, RS-232 communication pins, power supply pin, ground connection, charge pump capacitor pins
