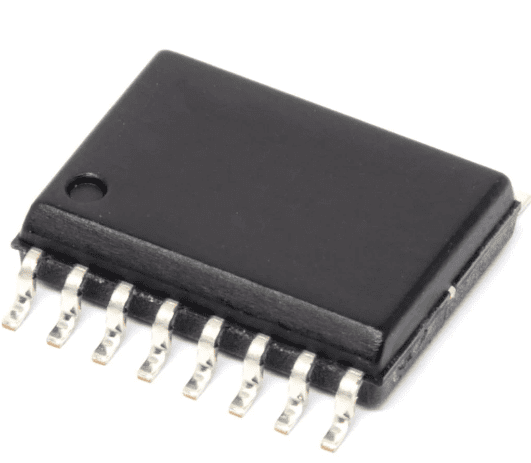

MAX232 300MIL SOIC-16 RS-232 Line Driver and Receiver IC (MAX232)
The MAX232 is a reliable RS-232 communication interface IC designed for serial data transmission, voltage level conversion, and embedded communication systems. It integrates dual line drivers and dual receivers with internal charge pump circuitry, making it ideal for microcontroller interfacing, industrial communication equipment, and computer serial port applications.
Key Features -
- RS-232 line driver and receiver IC
- Integrated dual transmitters and dual receivers
- Internal charge pump voltage converter
- SOIC-16 300MIL surface mount package
- Compatible with TTL and CMOS logic levels
Specifications -
- IC type / Product type - RS-232 Line Driver and Receiver IC
- Logic family / Component type - Communication Interface IC
- Package type - SOIC-16 300MIL SMD IC
- Supply voltage - 5V DC typical
- Input voltage - TTL or CMOS compatible logic input levels
- Output voltage - RS-232 compatible output voltage levels
- Current rating - Low power communication operation
- Data rate - Supports high speed serial communication
- Operating temperature - Approx 0°C to +70°C
- Additional important specifications - Dual drivers and receivers, internal charge pump support, full duplex serial communication capability, low power operation, ESD protection support
Applications -
- RS-232 serial communication systems
- Microcontroller and UART interfacing
- Industrial automation equipment
- Embedded communication systems
- Computer serial port communication
Pinout Configuration -
- Pin 1 - Charge pump capacitor connection
- Pin 2 - Receiver input pin
- Pin 3 - Transmitter output pin
- Additional pins - TTL logic interface pins, RS-232 communication pins, power supply pin, ground connection, charge pump capacitor pins
