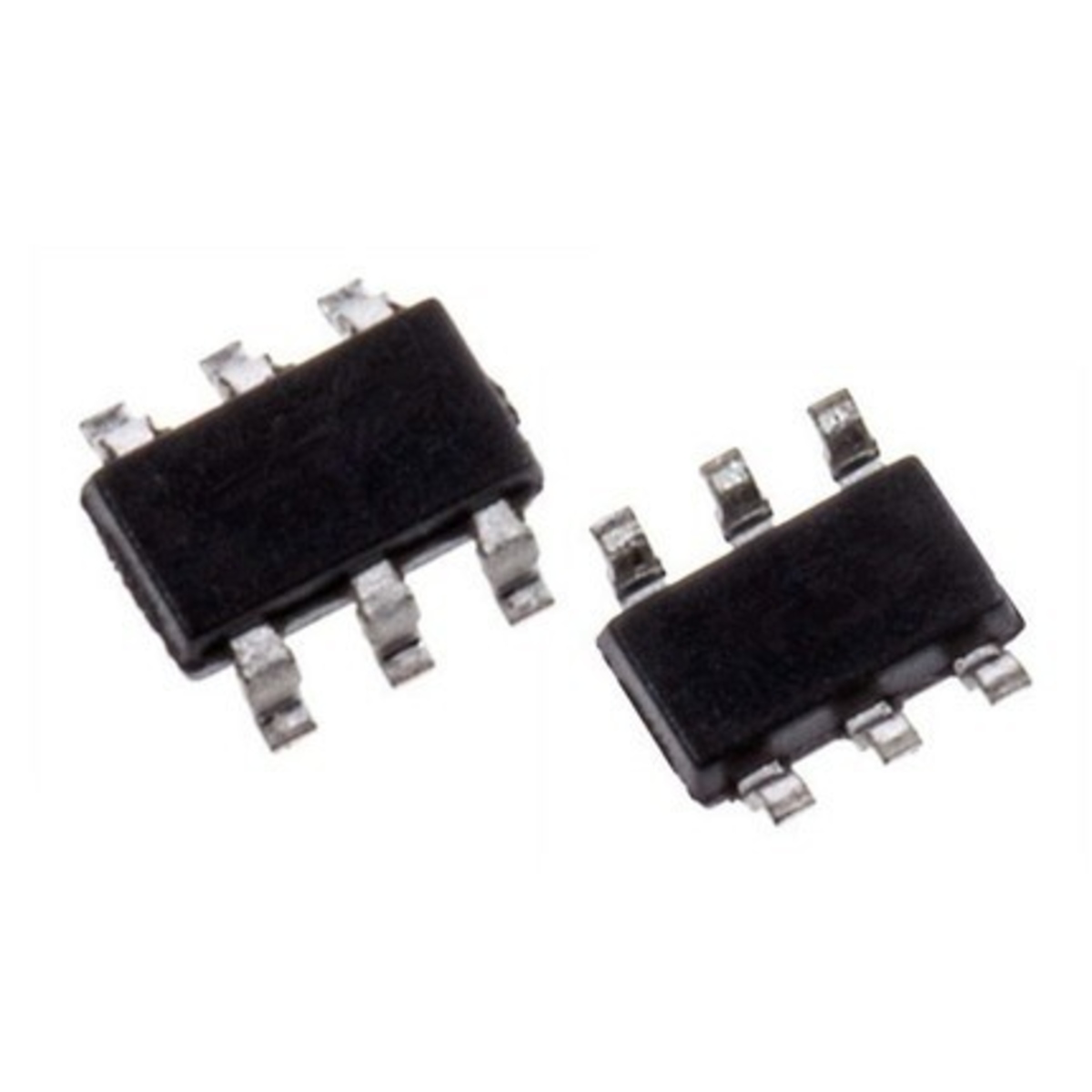

MAX2606EUT SOT-23-6 Voltage Controlled Oscillator IC (MAX2606EUT)
The MAX2606EUT is a compact voltage controlled oscillator (VCO) IC designed for RF signal generation, wireless communication systems, frequency synthesis, and local oscillator applications. It provides stable high frequency oscillation with low power consumption in a compact SOT-23-6 package.
Key Features -
- Voltage controlled oscillator IC
- High frequency RF signal generation
- Low power operation
- SOT-23-6 compact surface mount package
- Wide tuning frequency range
Specifications -
- IC type / Product type - Voltage Controlled Oscillator IC
- Logic family / Component type - RF and Wireless Communication IC
- Package type - SOT-23-6 SMD IC
- Supply voltage - Approx 2.7V to 5.5V DC
- Input voltage - Control voltage tuning input
- Output voltage - RF oscillator output signal
- Current rating - Low power RF operation
- Frequency / propagation delay - High frequency oscillator operation up to GHz range
- Operating temperature - Approx -40°C to +85°C
- Additional important specifications - Integrated VCO design, low phase noise performance, frequency tuning support, stable RF output, compact package size
Applications -
- Wireless communication systems
- RF signal generators
- Frequency synthesizers
- Local oscillator circuits
- Embedded RF applications
Pinout Configuration -
- Pin 1 - RF output pin
- Pin 2 - Ground connection
- Pin 3 - Tuning voltage input pin
- Additional pins - Power supply pin, oscillator control pins, enable or bias pins
