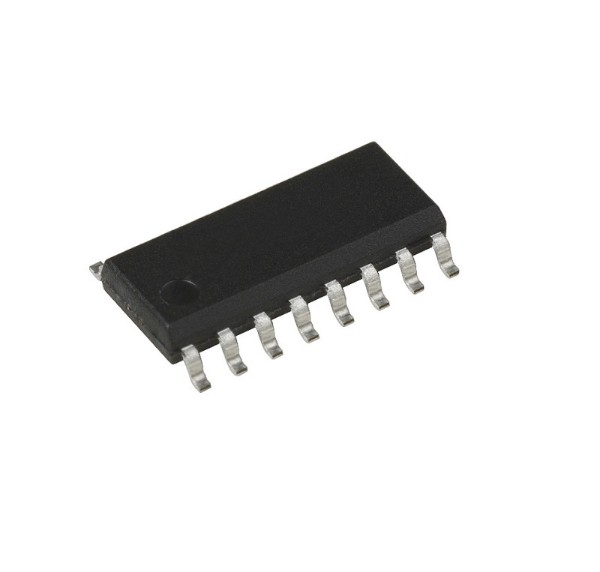

MAX3232CSE CH SOIC16 RS232 Level Converter IC Serial Communication Transceiver (MAX3232 IC)

The MAX3232CSE CH SOIC16 IC is designed for RS232 serial communication and voltage level conversion applications in microcontroller systems, embedded electronics, industrial automation, and communication interfaces. It enables reliable bidirectional data transfer between TTL logic levels and RS232 serial devices.

Key Features -

• RS232 serial communication transceiver

• Dual transmitter and dual receiver design

• SOIC16 compact SMD package

• Low voltage operation support

• High speed serial data communication

• Compatible with microcontroller systems

Specifications -

• Product type - RS232 Level Converter IC

• Model - MAX3232CSE

• Package type - SOIC16 SMD package

• Mounting type - Surface mount SMD

• Supply voltage - 3V to 5.5V DC

• Communication type - RS232 serial interface

• Number of transmitters - 2 transmitters

• Number of receivers - 2 receivers

• Data rate - Up to 250kbps

• Operating temperature - Commercial operating range

• Additional features - Low power consumption, internal charge pump, reliable serial communication

Applications -

• Microcontroller serial communication

• RS232 interface circuits

• Embedded electronic systems

• Industrial automation equipment

• Communication converter modules
