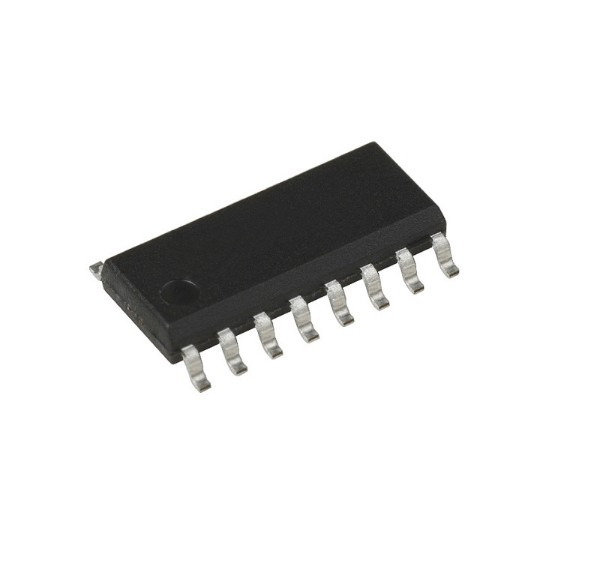

MAX3232ESE Original SOIC16 RS232 Transceiver Interface IC

The MAX3232ESE Original SOIC16 RS232 Transceiver Interface IC is designed for reliable serial communication between TTL or CMOS logic systems and RS232 compatible devices. It provides dual transmitters and dual receivers for full duplex serial data communication in embedded systems, industrial electronics, and microcontroller applications.

Key Features -

• Original MAX3232ESE RS232 transceiver IC

• Dual driver and dual receiver configuration

• Compatible with RS232 serial communication

• Low power operation design

• SOIC16 surface mount package

• Suitable for 3V to 5V logic systems

Specifications -

• Product type - RS232 Transceiver Interface IC

• IC type - MAX3232ESE

• Logic family - RS232 communication interface

• Package type - SOIC16 surface mount package

• Mounting type - SMD mounting

• Supply voltage - Approx 3V to 5.5V

• Communication type - Full duplex RS232 serial communication

• Data rate - Approx up to 250kbps

• Operating temperature - Approx 0 degree C to 70 degree C

• Driver configuration - Dual transmitter and dual receiver

• Interface compatibility - TTL CMOS to RS232 conversion

• Additional features - Internal charge pump, low power consumption, reliable serial communication

Applications -

• Microcontroller serial communication

• Embedded system interfacing

• Industrial automation systems

• Computer serial communication

• RS232 communication modules
