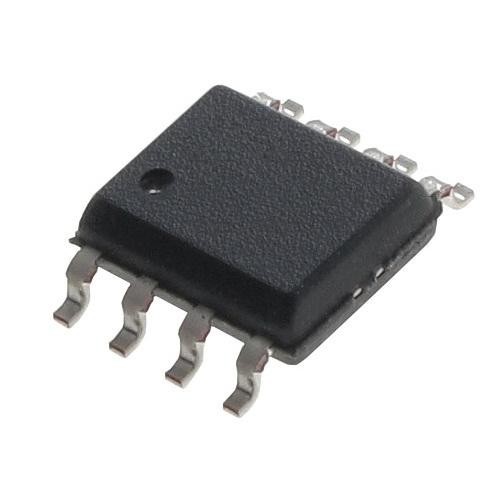

Original MAX3485ECSA RS485 Transceiver IC (SOIC 8, 3.3V)

The MAX3485ECSA is a low power RS485 and RS422 compatible transceiver designed for half duplex differential data communication. It converts single ended logic signals into differential signals for transmission over balanced communication lines and converts received differential signals back into logic level data. This original IC operates from a 3.3V supply and is suitable for industrial communication and embedded networking applications.

Key Features -

• Original MAX3485ECSA transceiver IC

• RS485 and RS422 compatible communication

• Half duplex differential data transmission

• Designed for 3.3V supply operation

• Integrated differential line driver and receiver

• Driver and receiver enable control

• Slew rate suitable for high speed data communication

• Compact SOIC 8 surface mount package

Specifications -

• Part Number: MAX3485ECSA

• IC Type: RS485 and RS422 Transceiver

• Package: SOIC 8

• Supply Voltage: 3.3V

• Communication Mode: Half duplex

• Data Rate: Up to 10 Mbps

• Driver Output: Differential

• Receiver Input: Differential

• Bus Interface: RS485 compatible

• Operating Temperature: Refer to the manufacturer datasheet

Applications -

• Industrial automation and control

• Microcontroller based RS485 communication

• Modbus communication interfaces

• Building automation systems

• Data acquisition equipment

• Long distance serial communication

• Embedded networking equipment
