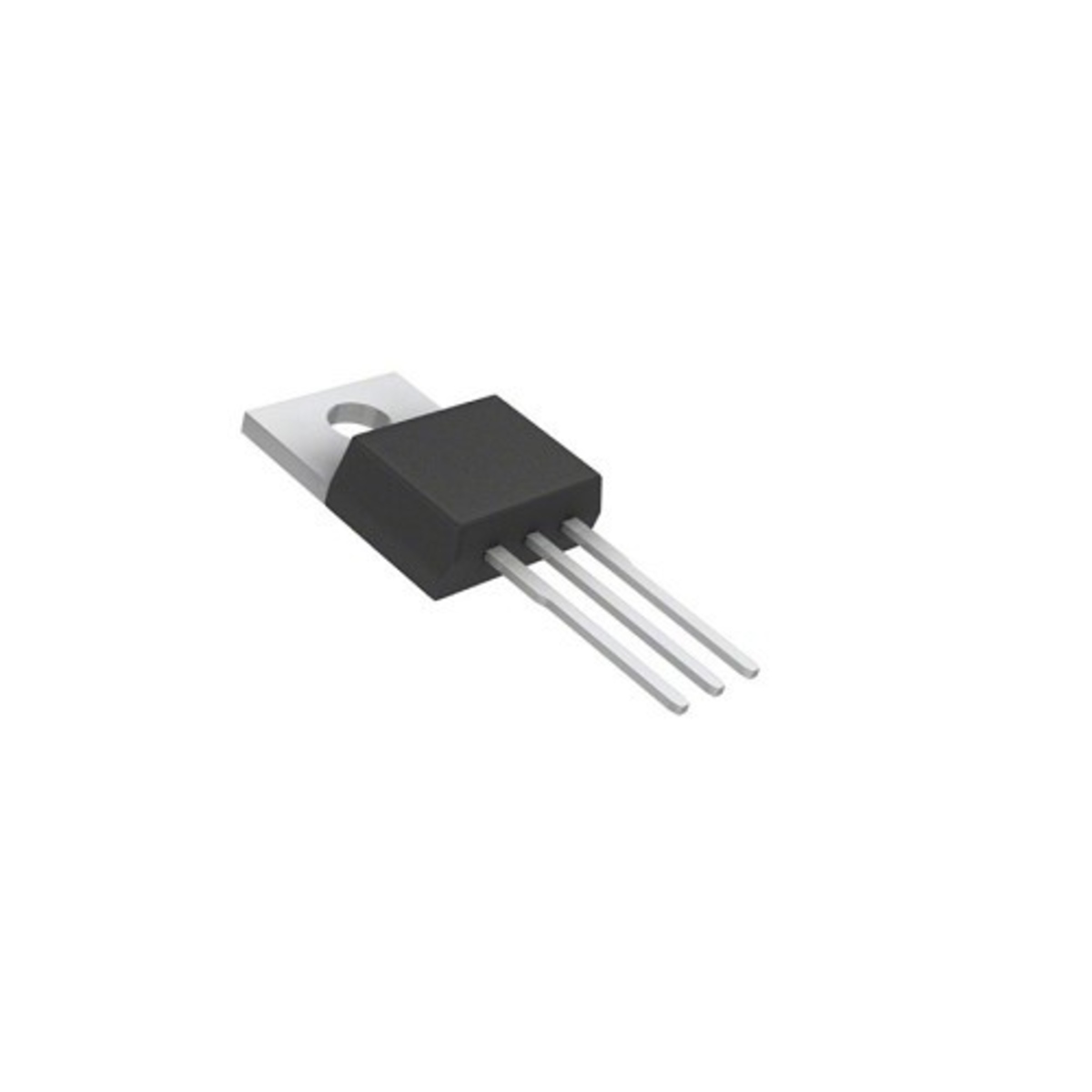

MBR20100CT 100V 20A Schottky Barrier Rectifier Diode Dual Common Cathode TO-220AB

The MBR20100CT is a dual Schottky barrier rectifier diode featuring a common cathode configuration in a TO-220AB package. Designed for high-efficiency power rectification applications, it offers fast switching characteristics and low forward voltage drop, making it suitable for switch mode power supplies, DC-DC converters, battery chargers, and power management circuits.

Key Features -

• Dual Schottky barrier rectifier diode

• 100V reverse voltage rating

• 20A average forward current rating

• Common cathode configuration

• Low forward voltage drop

• Fast switching performance

• TO-220AB package

• Suitable for high-efficiency power circuits

Specifications -

• Product type - Schottky Rectifier Diode

• Model - MBR20100CT

• Diode configuration - Dual Common Cathode

• Reverse voltage - 100V

• Forward current - 20A

• Package type - TO-220AB

• Mounting type - Through Hole

• Technology - Schottky Barrier

• Application - Power Rectification

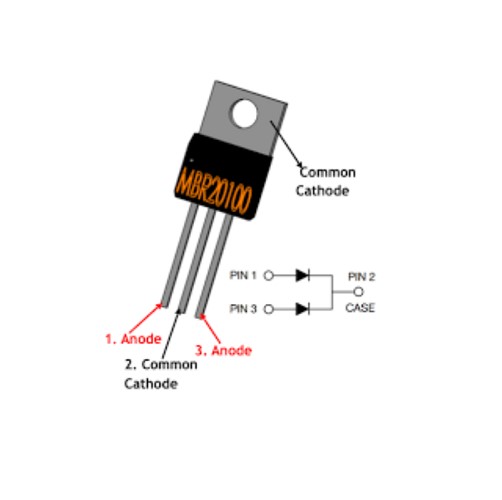

Interfaces -

• Pin 1 - Anode 1

• Pin 2 - Cathode Common

• Pin 3 - Anode 2

• Tab - Cathode Common

Applications -

• Switch mode power supplies

• DC-DC converters

• Battery charging circuits

• Power adapters

• Solar power systems

• Industrial power electronics

• High-frequency rectification circuits
