MBR20200CT Dual Schottky Diode 20A 200V TO-220 (Dual Anode Common Cathode Schottky Rectifier)

The MBR20200CT is a dual Schottky rectifier diode designed for high-efficiency power rectification in high-current applications. Featuring a Dual Anode Common Cathode configuration, 20A forward current rating, and 200V repetitive reverse voltage, it offers low forward voltage drop, fast switching performance, and excellent thermal characteristics. Packaged in a TO-220-3 through-hole package, it is ideal for switch mode power supplies, DC-DC converters, battery chargers, inverters, and industrial power electronics.

Key Features -

• Dual Schottky rectifier with Dual Anode Common Cathode configuration

• High forward current rating of 20A

• Repetitive reverse voltage of 200V

• Low forward voltage drop of 0.95V (Max)

• High surge current capability of 150A

• Fast switching with negligible reverse recovery loss

• Wide operating temperature range from -55°C to +150°C

• TO-220-3 package for efficient heat dissipation

Specifications -

• Product Type - Dual Schottky Rectifier Diode

• Part Number - MBR20200CT

• Technology - Silicon Schottky

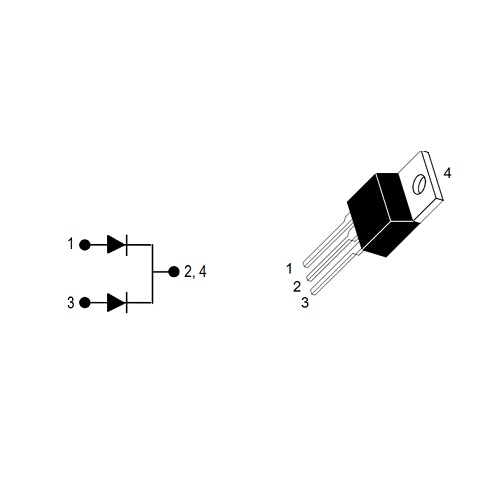

• Configuration - Dual Anode Common Cathode

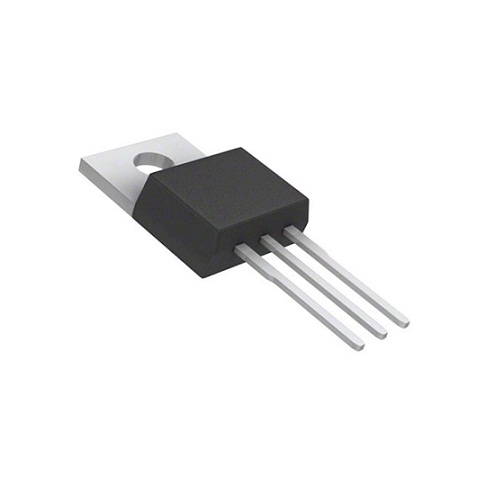

• Package - TO-220-3

• Mounting Type - Through Hole

• Forward Current (IF) - 20A

• Repetitive Reverse Voltage (VRRM) - 200V

• Forward Voltage (VF Max) - 950mV

• Forward Surge Current (IFSM) - 150A

• Reverse Current (IR Max) - 200µA

• Operating Temperature Range - -55°C to +150°C

• Make/Brand - ST / ON (Original)

Applications -

• Switch Mode Power Supplies (SMPS)

• DC-DC converters

• Battery charging circuits

• Solar power systems

• Inverter and UPS systems

• Freewheeling diode applications

• Motor drive circuits

• Industrial power supplies

• High-current rectification circuits
