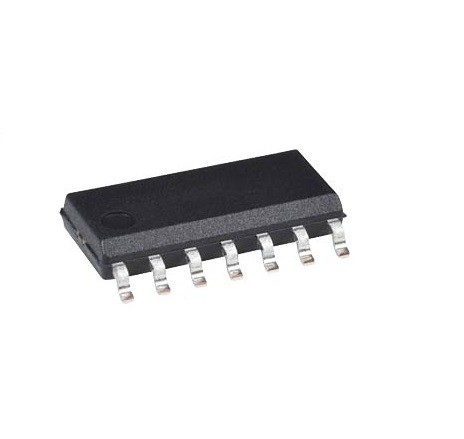

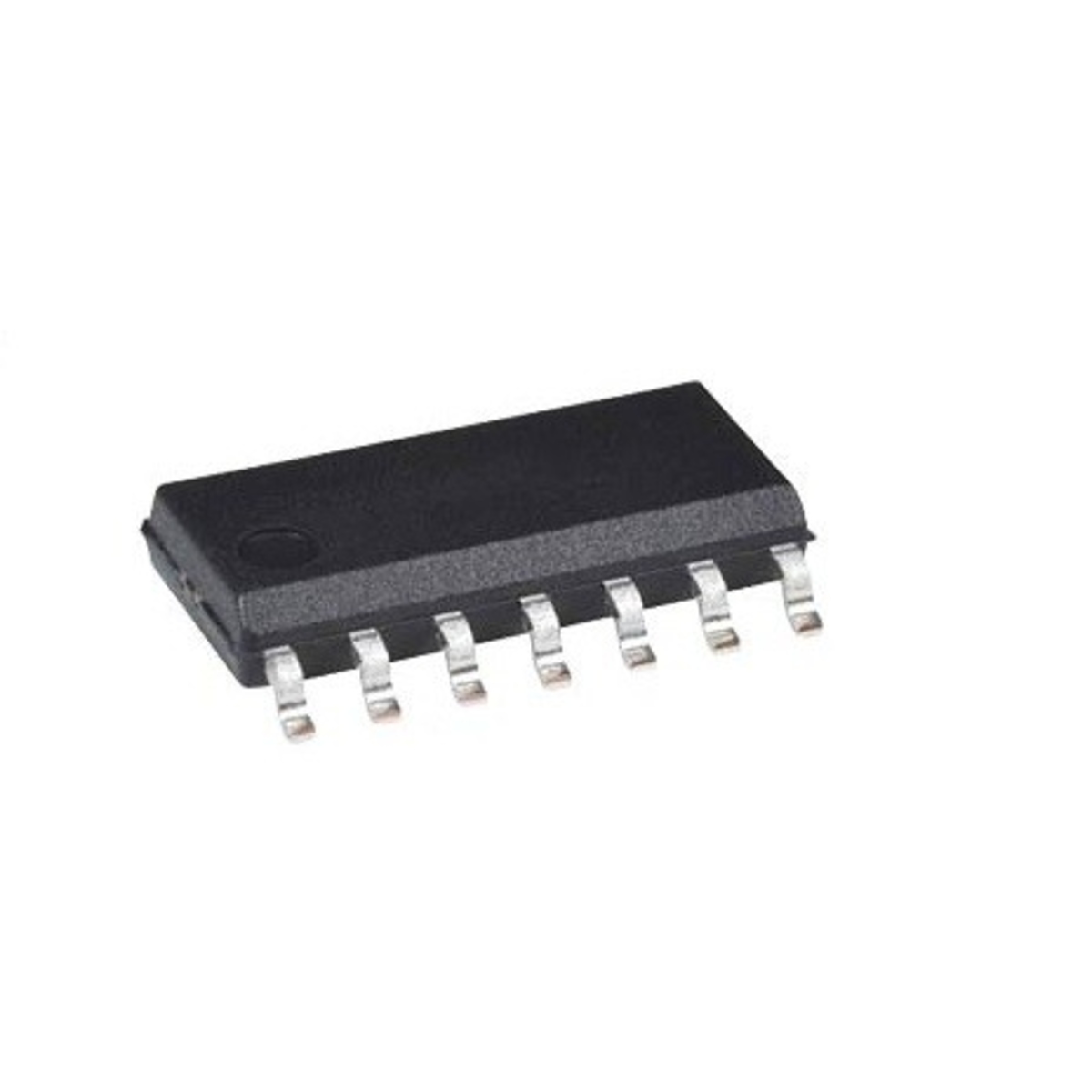

MC3403 Quad Operational Amplifier IC SOIC-14 (MC3403 Op-Amp IC)

The MC3403 is a low-power quad operational amplifier IC containing four independent internally compensated operational amplifiers in a single package. It is designed for signal amplification, filtering, voltage comparison, sensor interfacing, and general-purpose analog circuit applications. The device offers reliable performance over a wide supply voltage range, making it suitable for industrial, consumer, and embedded electronics.

Key Features -

• Quad operational amplifier IC

• Four independent op-amps in one package

• Low power consumption

• Internally frequency compensated

• Wide supply voltage range

• High voltage gain

• Single or dual supply operation

• SOIC-14 surface mount package

Specifications -

• Product type - Operational Amplifier IC

• Model - MC3403

• Amplifier type - Quad Operational Amplifier

• Number of amplifiers - 4

• Package type - SOIC-14

• Mounting type - Surface Mount Device

• Supply voltage - Wide Operating Range

• Output type - Analog Voltage Output

• Frequency compensation - Internal

• Application - Signal Processing and Amplification

Applications -

• Sensor signal conditioning

• Active filter circuits

• Voltage comparator circuits

• Audio preamplifiers

• Industrial control systems

• Instrumentation equipment

• Data acquisition systems

• Embedded analog electronics
