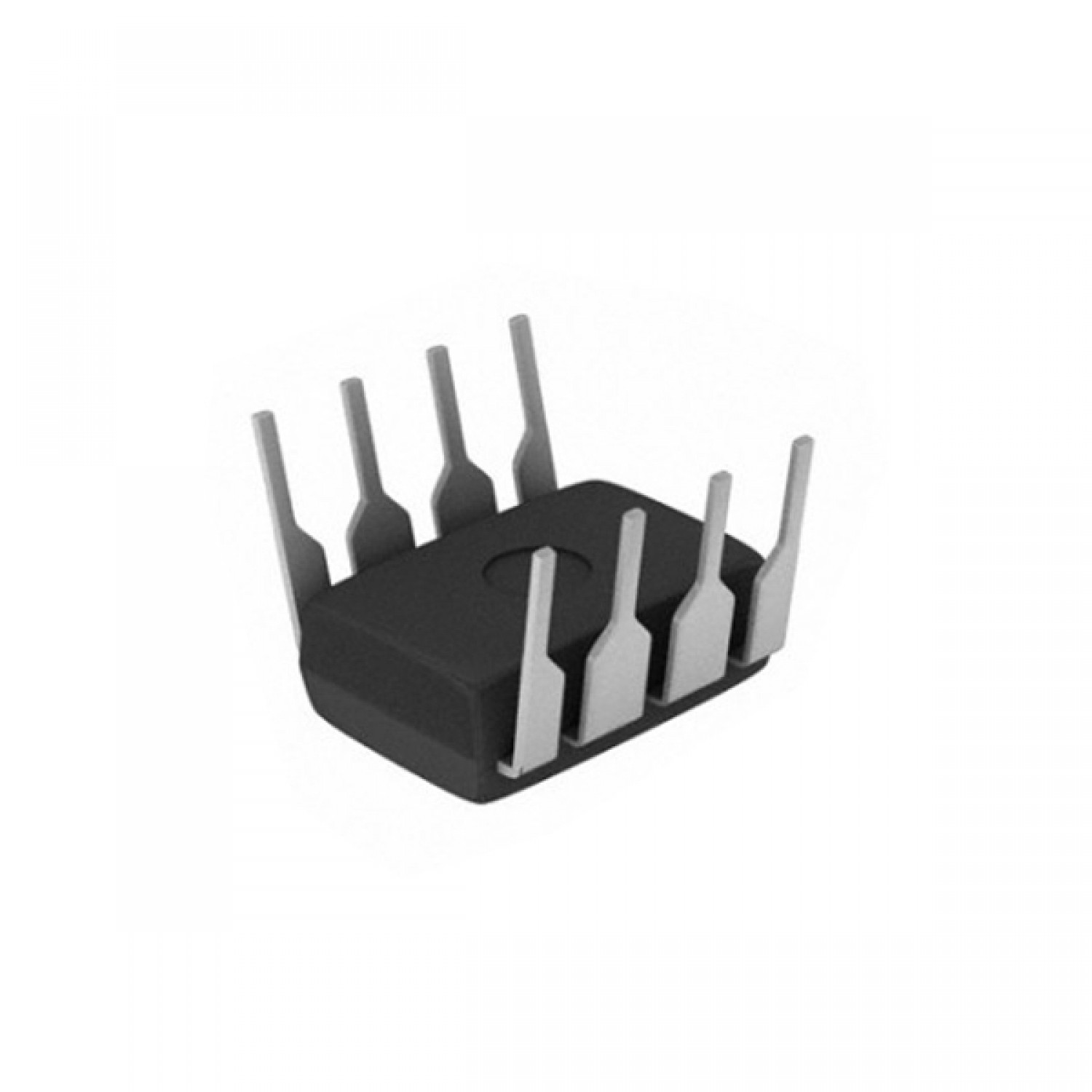

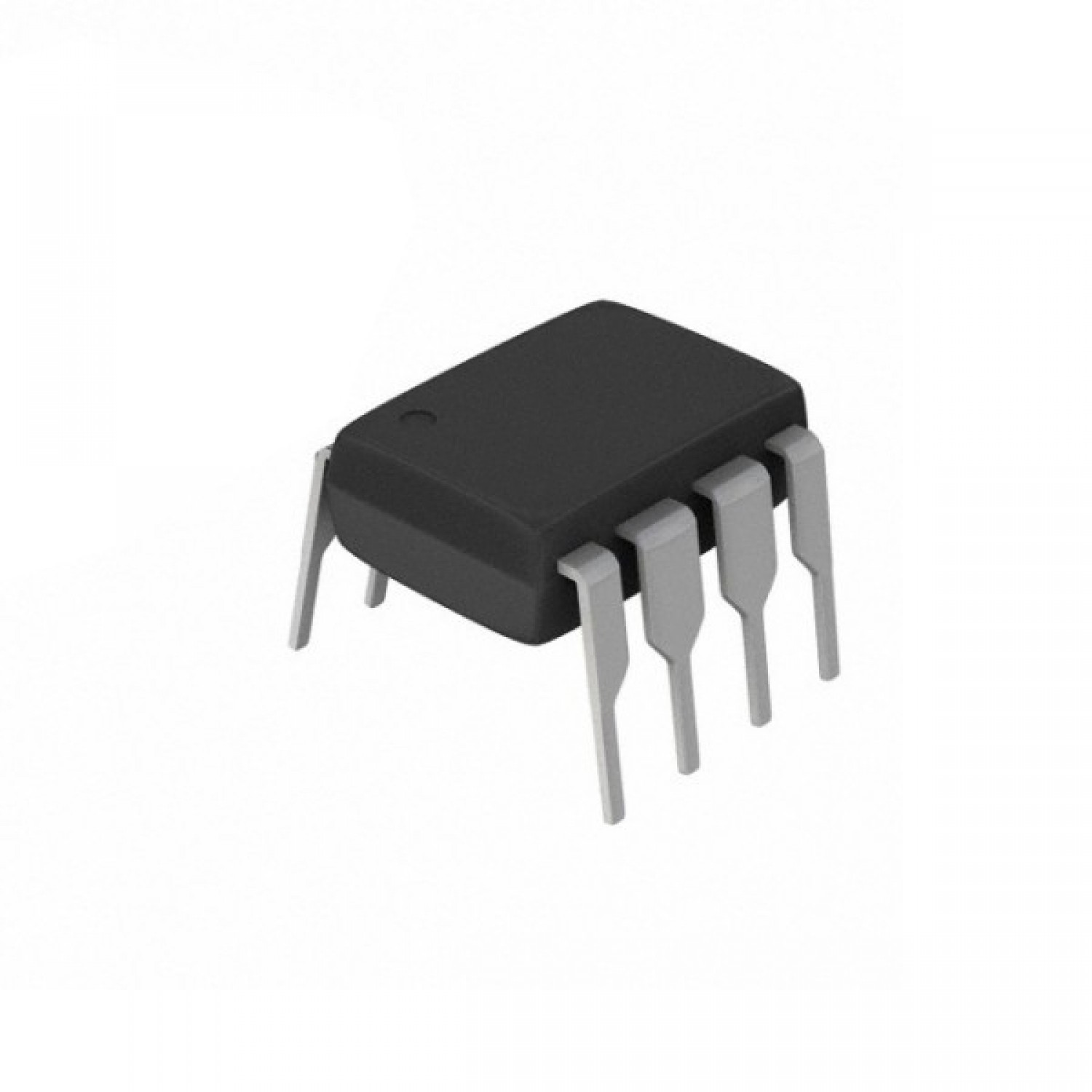

MC1391P DIP-8 TV Horizontal Processor IC (MC1391P Television Deflection IC)

The MC1391P is a TV horizontal processor IC designed for television deflection circuits, horizontal synchronization processing, and video display control applications. It provides reliable horizontal timing and synchronization functions for CRT television and video display systems.

Key Features -

• TV horizontal processor functionality

• Horizontal synchronization signal processing

• Reliable television deflection control

• DIP-8 through hole package

• Stable timing and sync operation

• Suitable for television and video display applications

Specifications -

• Product type - Horizontal processor IC

• Model - MC1391P

• Function type - TV horizontal synchronization processor

• Package type - DIP-8 through hole package

• Mounting type - Through Hole Mount

• Application type - Television deflection and synchronization circuits

• Voltage rating - Suitable for television electronic circuits

• Current rating - Low power signal processing operation

• Frequency - Designed for horizontal scan timing applications

• Material - Semiconductor integrated circuit

• Additional features - Integrated synchronization and horizontal control functions for CRT display systems

Applications -

• CRT television repair and servicing

• Television horizontal deflection circuits

• Video display systems

• Electronic servicing and maintenance

• Vintage television restoration projects
