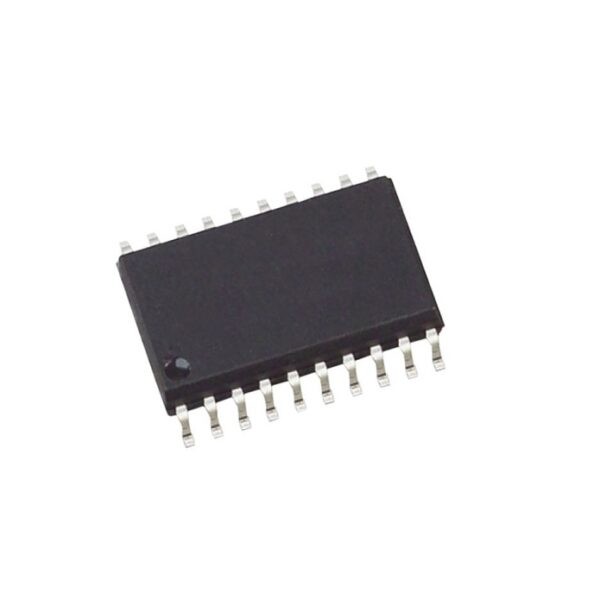

MCP2200 I/SO USB to UART Protocol Converter IC (SOIC 20, GPIO)

The MCP2200 I/SO from Microchip Technology is a USB to UART protocol converter integrated circuit designed to provide USB connectivity for UART based microcontrollers and embedded systems. It converts data between a USB host and a UART serial interface, enabling communication with computers and other USB enabled systems. The IC also provides configurable general purpose input/output (GPIO) pins for digital control and status functions. Its SOIC 20 package is suitable for surface mount PCB designs.

Key Features -

• USB to UART protocol conversion

• USB connectivity for UART based embedded devices

• Eight configurable general purpose input/output pins

• Supports digital input and output functions through GPIO

• Integrated USB interface circuitry

• Suitable for serial communication and device configuration

• SOIC 20 surface mount package

Specifications -

• Brand: Microchip Technology

• Model: MCP2200 I/SO

• Component Type: USB to UART protocol converter IC

• USB Interface: USB

• Serial Interface: UART

• GPIO: Eight configurable general purpose input/output pins

• Package Type: SOIC 20

• Mounting Type: Surface mount

• Main Function: USB to UART data conversion

• Electrical Ratings and Data Rate: Refer to the official MCP2200 datasheet for supported operating conditions and communication specifications

Applications -

• USB to UART adapter circuits

• Microcontroller communication interfaces

• Embedded system development boards

• USB based programming and debugging interfaces

• Industrial equipment configuration and diagnostics

• Serial communication between computers and embedded devices

• Electronic product development and prototyping
