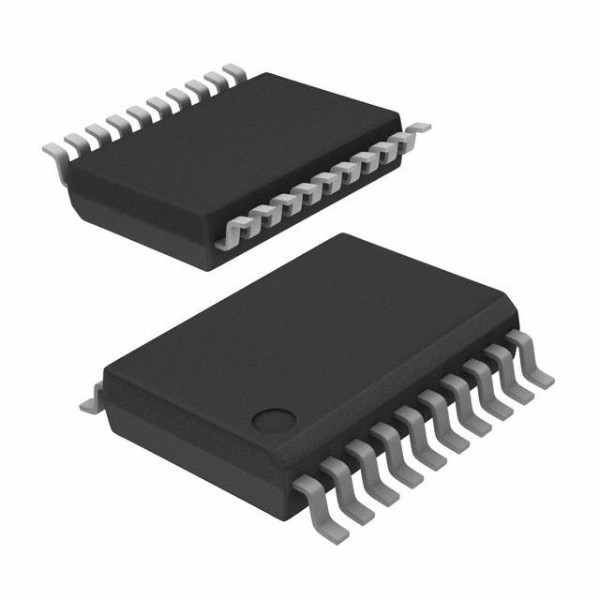

MCP2200 I/SS USB to UART Protocol Converter IC (SSOP 20, GPIO)

The MCP2200 I/SS is a USB to UART protocol converter integrated circuit from Microchip Technology. It provides a bridge between a USB host and a Universal Asynchronous Receiver Transmitter (UART) interface, allowing USB connectivity for microcontrollers and embedded electronic systems. The IC also includes general purpose input/output (GPIO) pins that can be configured for digital input and output functions. Its SSOP 20 package is suitable for compact PCB designs and USB interface development.

Key Features -

• USB to UART protocol conversion

• Supports USB connectivity for UART based devices

• Integrated GPIO pins for digital input and output functions

• Configurable device settings using supported configuration tools

• Suitable for microcontroller communication and debugging interfaces

• Integrated USB interface circuitry

• Compact SSOP 20 surface mount package

Specifications -

• Brand: Microchip Technology

• Model: MCP2200 I/SS

• Component Type: USB to UART protocol converter

• Interface: USB and UART

• GPIO: Eight general purpose input/output pins, subject to device configuration

• Package Type: SSOP 20

• Mounting Type: Surface mount

• Application: USB connectivity for UART based embedded systems

• Operating Voltage and Data Rate: Refer to the official MCP2200 datasheet for exact electrical limits and supported configurations

Applications -

• USB to UART communication adapters

• Microcontroller programming and debugging interfaces

• Embedded system development boards

• USB connectivity for legacy serial devices

• Industrial control and monitoring equipment

• USB based configuration and diagnostic interfaces

• Electronic product development and prototyping
