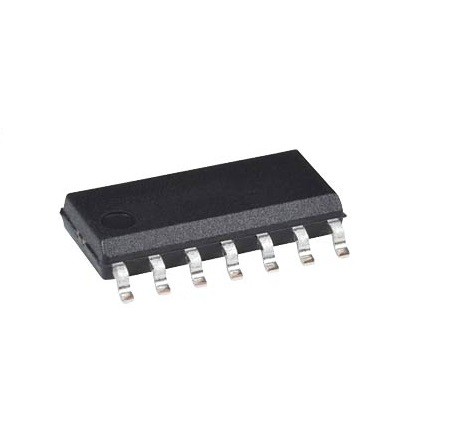

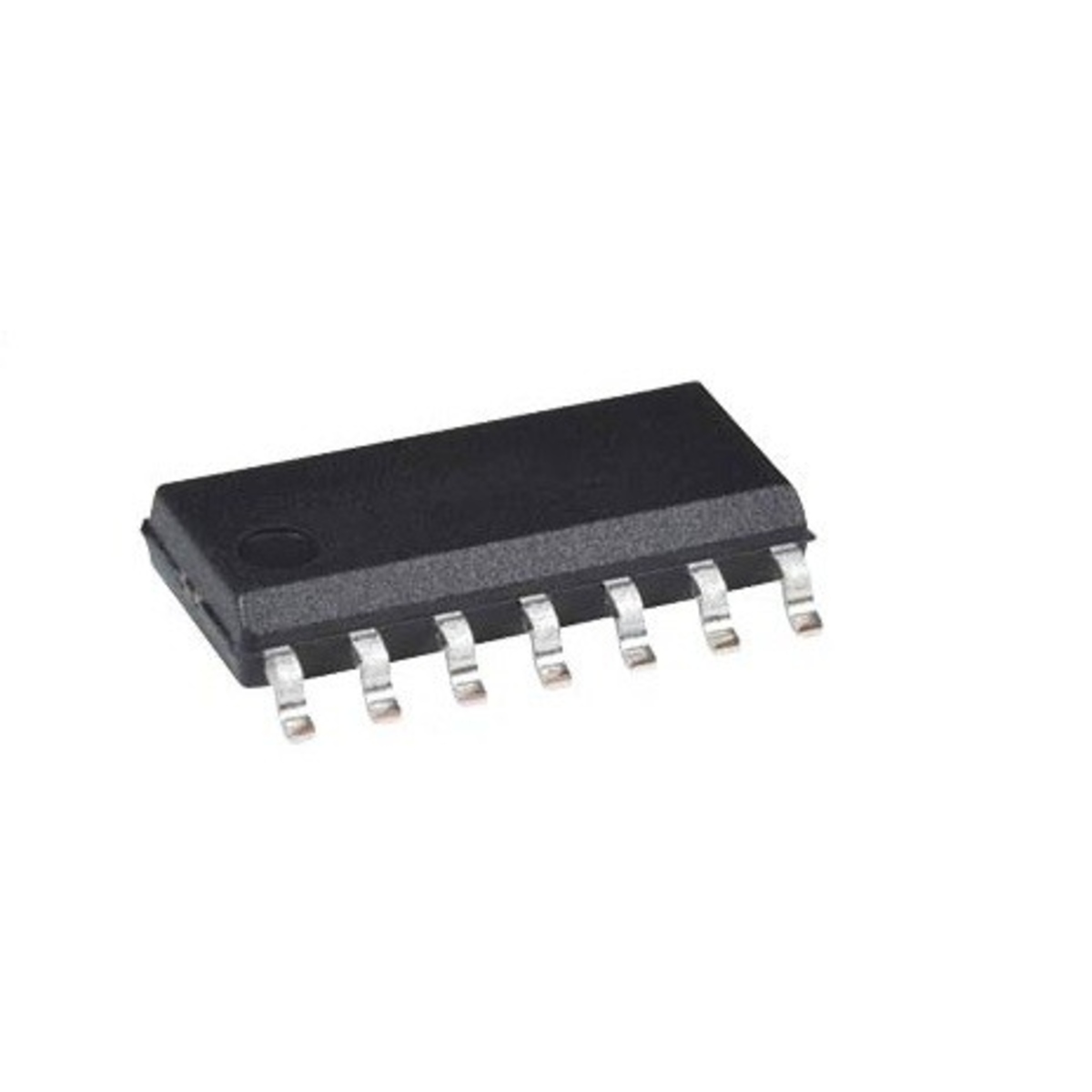

MCP3204-CI/SN 12-Bit Analog to Digital Converter SOIC-14 (MCP3204 ADC IC)

The MCP3204-CI/SN is a high-performance 12-bit Analog-to-Digital Converter (ADC) designed for precise conversion of analog signals into digital data. Featuring four input channels and a Serial Peripheral Interface (SPI), this IC provides accurate signal measurement for sensors, instrumentation systems, industrial controls, and microcontroller-based applications. Its SOIC-14 package makes it suitable for compact PCB designs and embedded systems.

Key Features -

• 12-bit analog-to-digital conversion resolution

• Four analog input channels

• SPI serial communication interface

• High conversion accuracy

• Low power consumption

• Fast data acquisition capability

• Compact SOIC-14 package

Specifications -

• Product type - Analog-to-Digital Converter IC

• Model - MCP3204-CI/SN

• Resolution - 12-Bit

• Number of channels - 4

• Interface type - SPI (Serial Peripheral Interface)

• Package type - SOIC-14

• Mounting type - Surface Mount Device (SMD)

• Input type - Single-ended and differential inputs

• Supply voltage - 2.7V to 5.5V

• Additional features - Low power operation, high accuracy, and microcontroller compatibility

Applications -

• Sensor interfacing systems

• Data acquisition equipment

• Industrial automation systems

• Measurement and instrumentation devices

• Arduino and microcontroller projects

• Environmental monitoring equipment

• Embedded control applications
