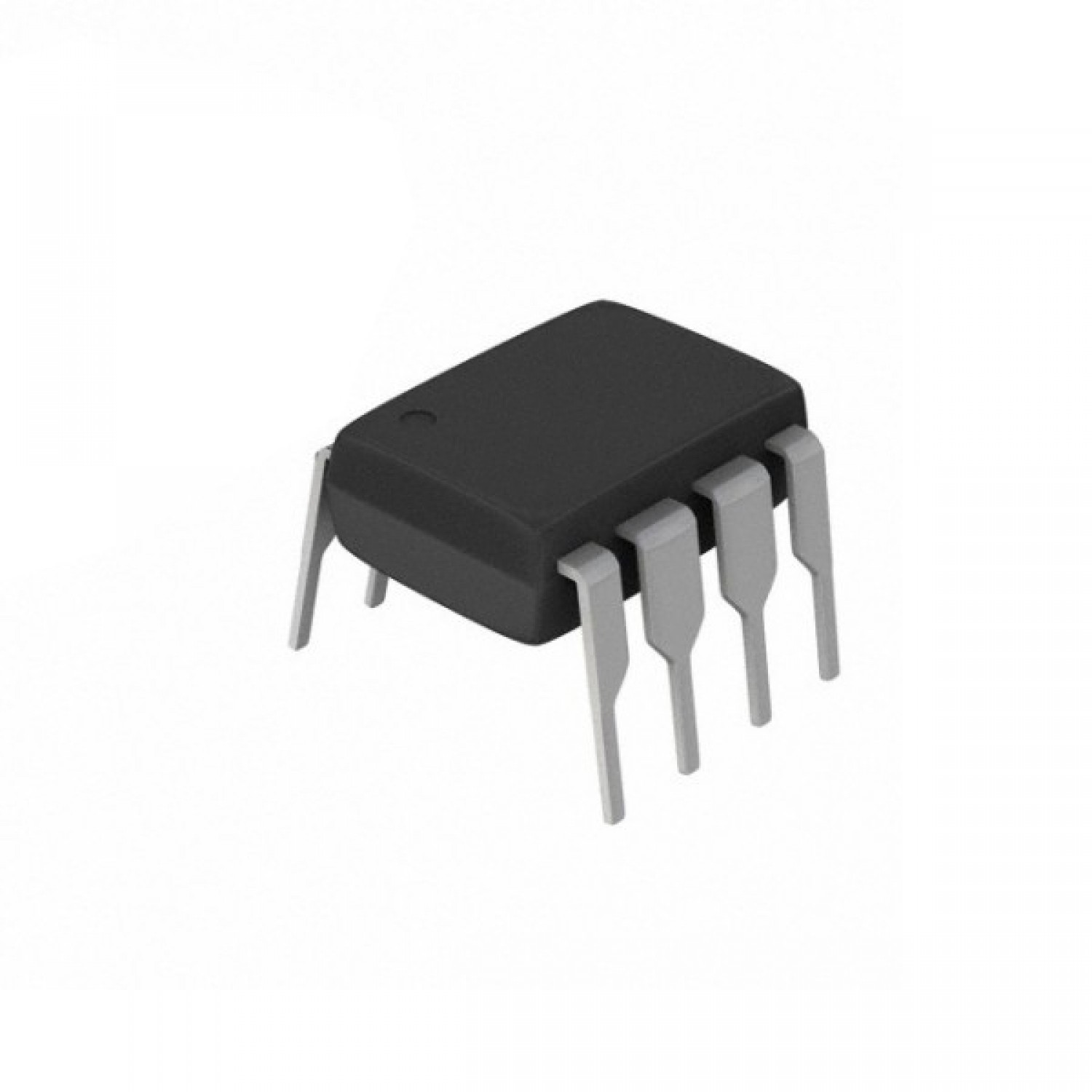

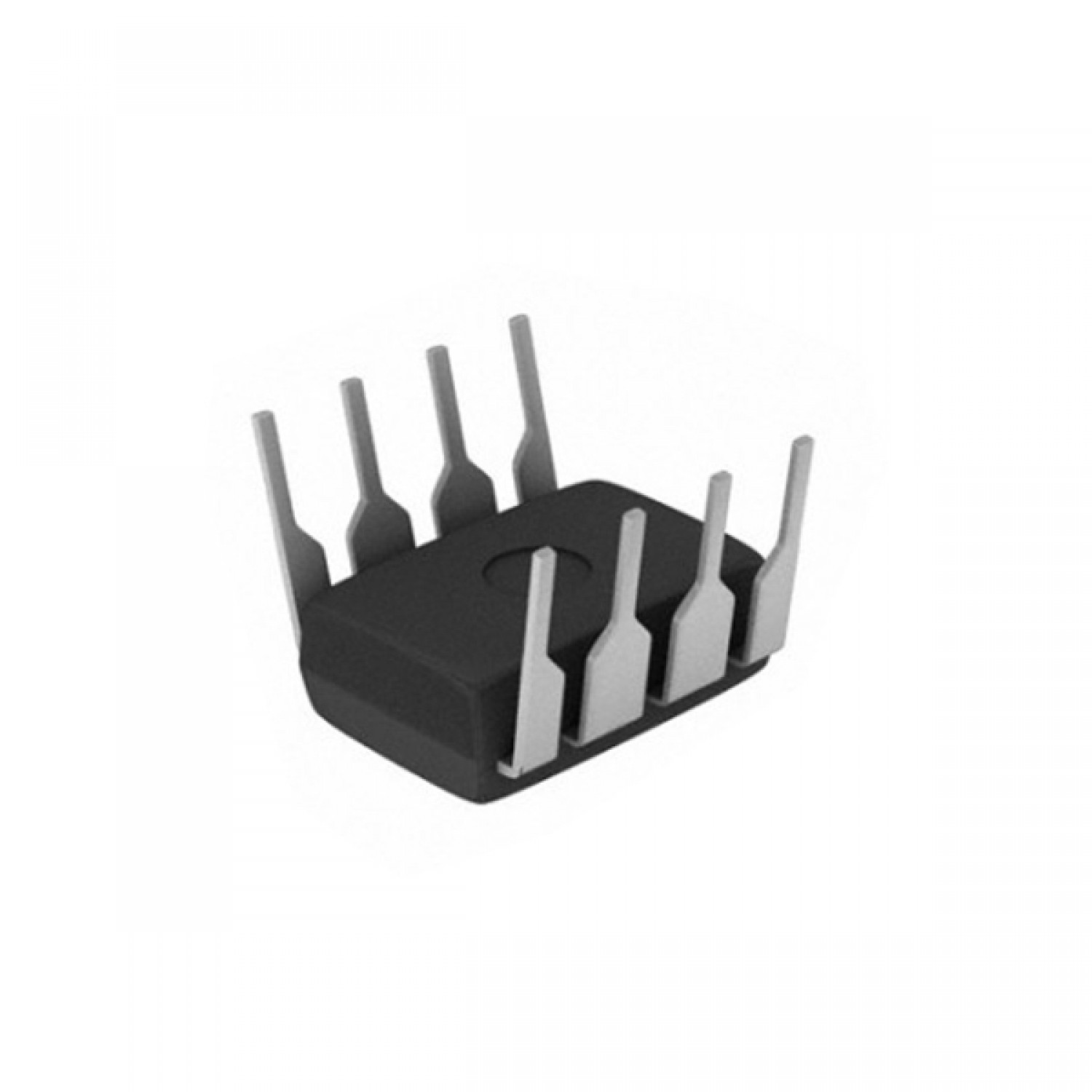

MCP4921-E/P 12-Bit Digital to Analog Converter IC DIP-8 (MCP4921 DAC IC)

The MCP4921-E/P is a high-accuracy 12-bit Digital to Analog Converter (DAC) designed for precision voltage output applications, signal generation, industrial control systems, instrumentation, and embedded electronics. It features a buffered voltage output, SPI-compatible serial interface, and low power consumption, making it ideal for microcontroller-based analog signal generation.

Key Features -

• 12-bit resolution digital to analog converter

• SPI compatible serial interface

• Single channel voltage output

• Buffered voltage output stage

• Fast settling time

• Low power consumption

• High accuracy analog output

• DIP-8 through hole package

Specifications -

• Product type - Digital to Analog Converter IC

• Model - MCP4921-E/P

• Resolution - 12 Bit

• Number of channels - 1

• Interface type - SPI Compatible Serial Interface

• Output type - Voltage Output

• Reference input - External Voltage Reference

• Package type - DIP-8

• Mounting type - Through Hole

• Operating voltage - 2.7V to 5.5V

Applications -

• Signal generation circuits

• Industrial automation systems

• Data acquisition equipment

• Embedded control systems

• Audio signal applications

• Programmable voltage sources

• Instrumentation equipment

• Microcontroller projects
