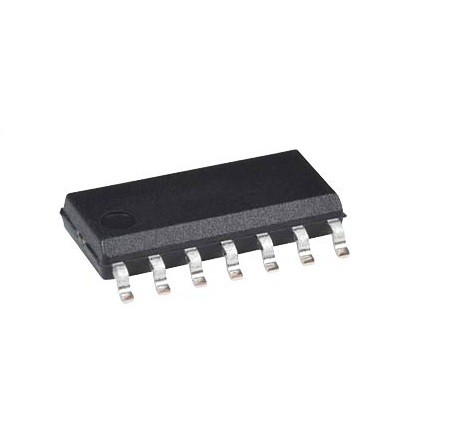

MCP6004-I/SL Quad Operational Amplifier (SOIC-14, 1.8V, 1 MHz)

The MCP6004-I/SL is a quad operational amplifier integrated circuit featuring four independent amplifiers in a single SOIC-14 package. It operates with a low supply voltage and offers a gain bandwidth product of 1 MHz, making it suitable for low-power analog signal conditioning, sensor interfaces, and signal processing circuits. Its compact surface-mount package supports space-efficient PCB designs.

Key Features -

• Four independent operational amplifiers in one integrated circuit

• Low-voltage operation with a supply voltage starting at 1.8V

• Gain bandwidth product of 1 MHz

• Rail-to-rail input and output operation

• Low-power consumption for battery-operated circuits

• SOIC-14 surface-mount package

• Suitable for low-frequency analog signal processing

Specifications -

• Manufacturer: Microchip Technology

• Part Number: MCP6004-I/SL

• Component Type: Quad Operational Amplifier

• Number of Amplifiers: 4

• Supply Voltage Range: 1.8V to 6.0V

• Gain Bandwidth Product: 1 MHz

• Input Offset Voltage: Refer to manufacturer datasheet

• Input Bias Current: Refer to manufacturer datasheet

• Input and Output Type: Rail-to-Rail

• Package: SOIC-14

• Mounting Type: Surface Mount

• Operating Temperature Range: -40 C to +85 C

Applications -

• Sensor signal conditioning

• Low-voltage analog circuits

• Active filters and signal amplification

• Portable and battery-powered electronics

• Analog signal processing

• Data acquisition systems

• Buffer and voltage follower circuits
